Wilo-Medana CH1-LC - 60Hz
Efficient system integration.
Efficient system integration.
Wilo-Medana CH1-LC with its robust pump housing offers high reliability and, with its corrosion-resistant components, a large field of application for integration in larger systems even at ambient temperatures of up to 50 °C. The non self-priming, multistage pump achieves maximum hydraulic output.
Recommended services
Your advantages
- High efficiency thanks to high hydraulic output
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C – which means an expanded field of application especially for system integration
- Compliant to UL certificate
Eco-friendly features
- Compact design for better system integration and space efficiency
- The robust stainless steel pump material and cataphoretic coating of the lantern ensure a long service life
- High hydraulic output enables high efficiency
Design type
Non-self-priming horizontal multistage pump.
Application
- Irrigation
- Industrial process
Equipment/function
- Pump in block design
- Threaded connection
- Single-phase or three-phase AC motor
- Single-phase motor with integrated thermal motor protection
Typekey
Example: | Wilo-MEDANA CH1-LC404-5/E/A/10T |
MEDANA | Family name surface pump |
CH | Commercial Horizontal |
1 | Series level (1 = entry, 3 = standard, 5 = premium) |
LC | Long shaft - Cast iron pump housing |
2 | Rated volume flow [m3/h] of the single pump |
02 | Number of single pump stages |
5 | Housing material GJL250 |
E | E = Sealing EPDM |
A | A = Frequency 50 Hz / Single-phase / 230 V |
B = Frequency 60 Hz / Single-phase / 220 V | |
C = Frequency 60 Hz / Single-phase / 230 V | |
D = Frequency 50 Hz / Three-phase / 400 V | |
E = Frequency 50 Hz / Three-phase / 230-400 V | |
F = Frequency 60 Hz / Three-phase / 220-380 V | |
G = Frequency 60 Hz / Three-phase / 265-460 V | |
I = Frequency 60 Hz / Three-phase / 460 V | |
10 | Nominal pressure (bar) |
T | T = Threaded connections |
P = Victaulic connections |

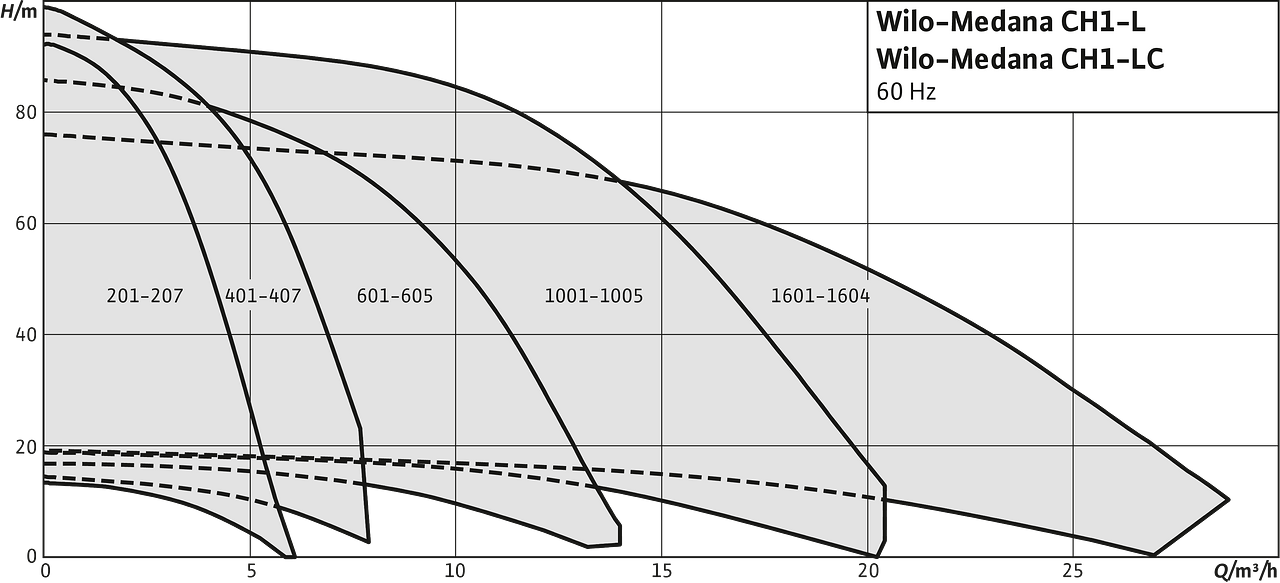

Technical data
- Mains connection 1~230 V (±10 %), 50Hz
- Mains connection: 3~230 V-400 V (±10 %), 50 Hz; 265-460 V (±10 %), 60 Hz
- Fluid temperature of -20 to +90 °C
- Max. operating pressure 10 bar
- Max. inlet pressure 6 bar
- IP rating IP55
- Nominal diameters of pipe connections: from Rp1” to Rp 1 1/4”depending on type
Materials
- Impellers, stage chambers and pump housing made of 1.4301/1.4404 stainless steel
- Shaft 1.4301 or 1.4404 stainless steel
- Seal EPDM
- Mechanical seal: EPDM version: B-carbon/silicon carbide;
- Bearing tungsten carbide/aluminum oxide
- Pump base and pump housing EN-GJL-250
Scope of delivery
- Pump
- Installation and operating instructions
