Switchgear CTM-HS
Ваши преимущества
• Flexible pumping strategy: Two selectable modes—All Together for rapid evacuation and One-by-One for energy-efficient staging—let operators match performance to site priorities with a single tap.
• Built-in redundancy & resilience: Up to four pumps with automatic fault change-over and equal runtime rotation keep the station operational 24 / 7, while a fallback to float control guarantees service even if the analogue sensor fails.
• Deep operational insight: A colour touch HMI displays live levels, electrical values and trend graphs, logs the last 100 alarms, and records every set-point change for full traceability.
• Proactive maintenance tools: Date-based service reminders, resettable hour counters and an on-demand auto-test routine help teams schedule work before problems arise.
• Rugged for harsh pits: IP 65 steel cabinet with built-in transformer, heater, fan and LED light protects electronics from moisture and condensation in underground chambers.
• Ready for remote monitoring: Standard Modbus RTU/TCP, Ethernet + WebGate and dry-contact SSM/SBM outputs provide seamless integration with BMS, SCADA or cloud platforms.
Тип

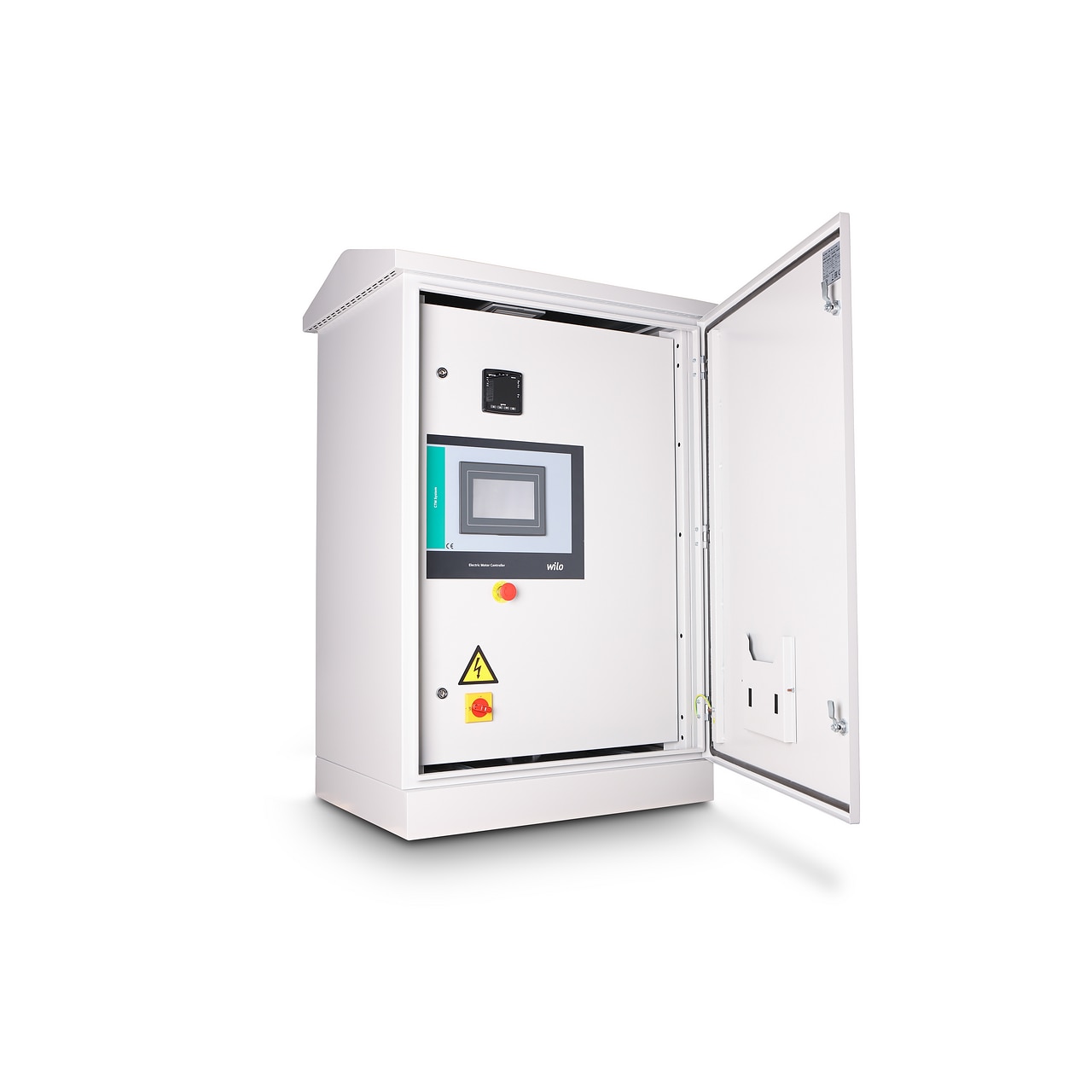

Microprocessor-controlled CTM-HS switchgear automates up to four wastewater lift pumps via a 4-20 mA hydrostatic level sensor. The panel houses all power and I/O in an IP 65 wall-mount enclosure complete with isolation transformer, service light, fan and anti-condensation heater. Equal-runtime rotation logic, two selectable operating modes and automatic fallback to float-switch control combine to give reliable, low-maintenance operation in municipal or industrial wet-well stations.
Расшифровка наименования
Sample: | CTM-HS 2X2.2 DOL |
CTM-HS | System with analog level sensor |
2 | Number of pumps |
2.2 | Nominal power of each pump P2 [kW] |
DOL | Direct starter |
SD | Star Delta starter |
FC | With frequency converter |
SS | With softstarter |
