How to Choose the Right Circulator Pump for Heating and Cooling

12.12.2025

Selecting the right circulator pump is critical for efficient HVAC performance. Whether you’re managing hydronic heating, chilled water loops, or hot water recirculation, the right pump ensures comfort, energy savings, and system reliability. This guide will help you make an informed choice.

Why Circulator Pumps Matter

Circulator pumps move water through closed-loop systems, maintaining consistent temperatures in heating and cooling applications. Unlike larger pumps that overcome elevation and friction losses, circulators primarily handle friction losses in pressurized systems. This makes them ideal for:

• Heating systems: Boilers, radiant floor heating, and district heating loops.
• Cooling systems: Chilled water loops for air conditioning and data centers.
• Hot water recirculation: Ensuring instant hot water at taps and showers.

Step 1: Understand Your System Type

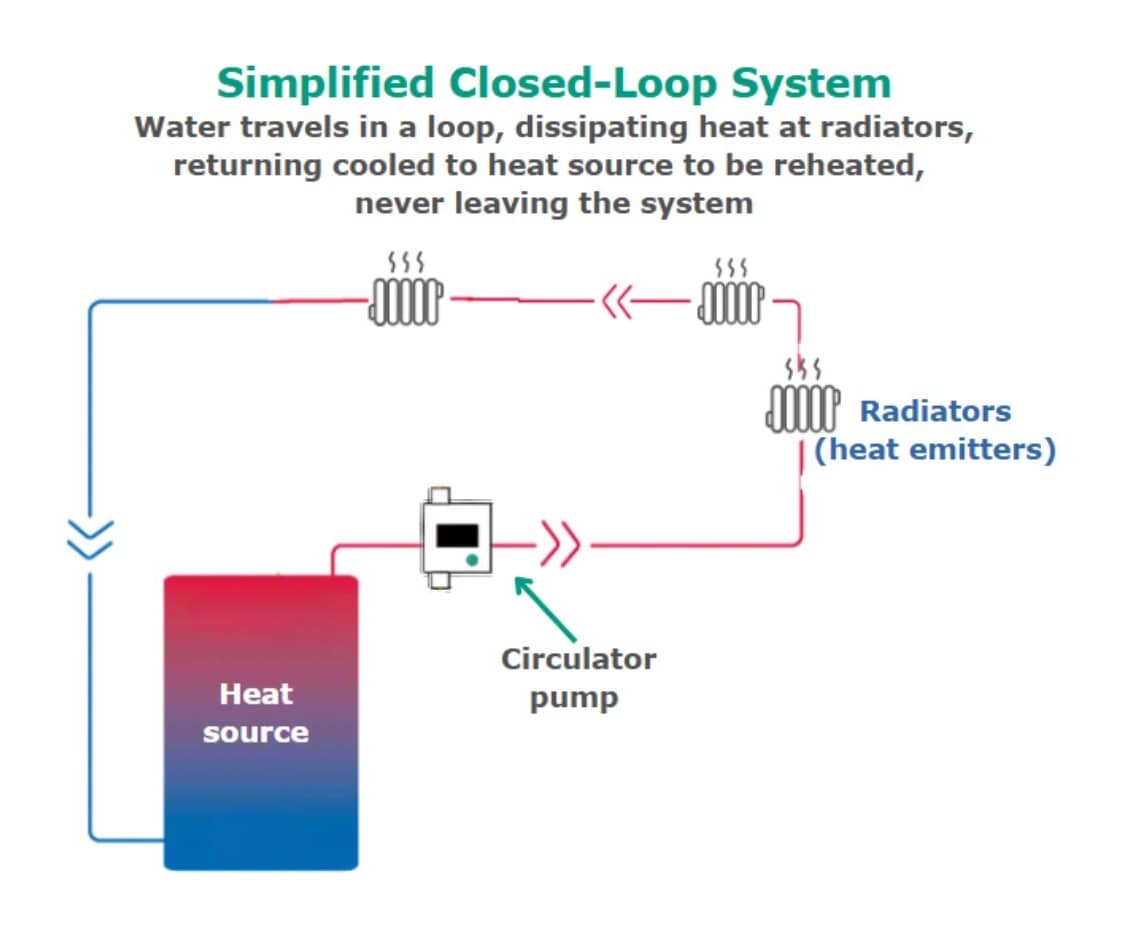

• Closed-Loop Systems
  Common in HVAC, these systems recirculate water continuously. Pumps only need to overcome friction losses, not elevation. Circulators are perfect for these applications because they require minimal power and deliver consistent flow.

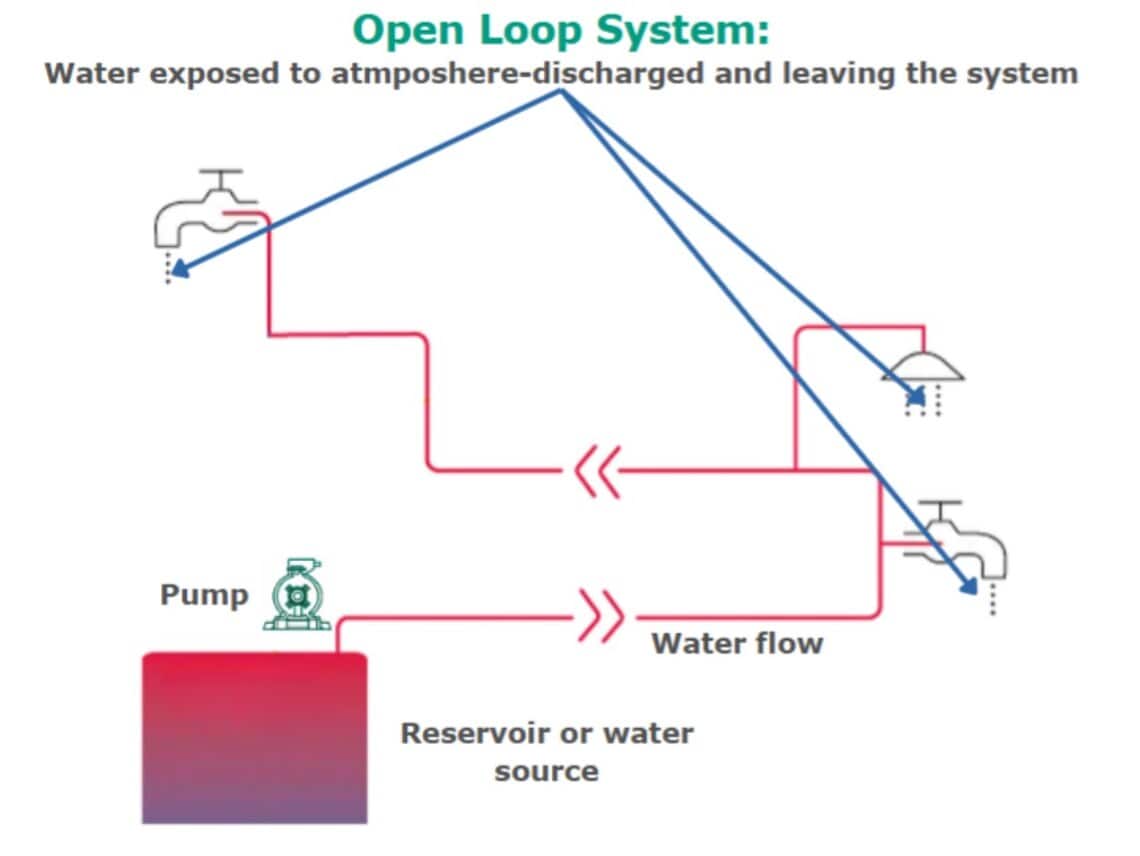

• Open-Loop Systems
  Less common in HVAC, open loops draw water from an external source and discharge it after use. Pumps in these systems must handle both elevation and friction losses, so circulators are generally not used here.

Step 2: Calculate Flow and Head Requirements

Proper sizing is critical:

• Flow Rate (GPM or m³/h): How much water needs to circulate?
• Head Pressure: In closed loops, calculate friction losses from piping, valves, and heat exchangers.

Step 3: Prioritize Energy Efficiency

Modern circulators offer features that significantly reduce energy consumption:

• EC Motor Technology: High-efficiency motors that adapt to system demand.
• Variable Speed Control: Adjusts pump speed automatically, saving energy during low-load conditions.
• Smart Connectivity: Integration with building automation systems for optimized performance.

Step 5: Consider Advanced Features

Today’s circulators do more than move water:

• Adaptive Performance: Automatically adjusts to system changes.
• Monitoring Tools: Apps like Wilo Assistant provide real-time data and diagnostics.
• Integration with VFDs: For large-scale systems, variable frequency drives optimize energy use.

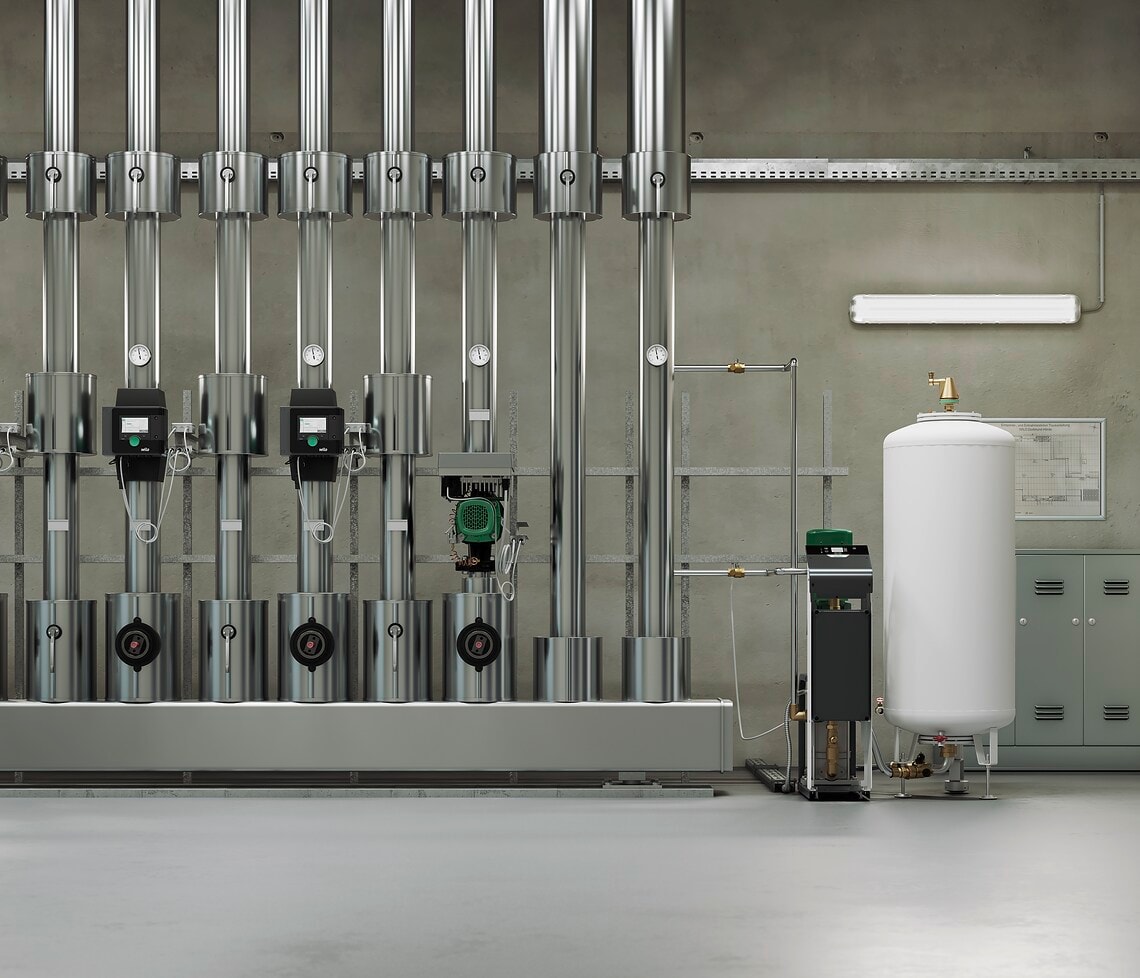

Applications Where Circulators Shine

• Residential: Hydronic heating, radiant floors, hot water recirculation.
• Commercial: Office buildings, hospitals, hotels—efficient climate control.
• Industrial: Process cooling, geothermal systems, and district heating.
• Data Centers: Maintaining stable chilled water circulation for IT equipment.

Common Mistakes to Avoid

• Ignoring System Type: Using a circulator in an open-loop system can cause failure.
• Oversizing: Leads to wasted energy and noise.
• Skipping Efficiency Features: Modern pumps pay for themselves in energy savings.

FAQ:

Q: What is a circulator pump?
A circulator pump moves water through a closed-loop system for heating or cooling.

Q: How do I size a circulator pump?
Calculate flow rate and friction losses, then use Wilo’s pump dimensioning tool.

Q: Why choose Wilo circulators?
Energy efficiency, smart features, and proven reliability.

Final Thoughts

Choosing the right circulator pump ensures comfort, efficiency, and long-term reliability. By considering system type, sizing, energy efficiency, and advanced features, you can make an informed decision.
