A pump is a device that transfers energy to a fluid, enabling it to move from one place to another. Mechanical energy from the motor is converted into kinetic energy (velocity of the fluid in motion) and potential energy (pressure rise within the contained fluid flow). This transformation is central to all rotodynamic pump designs, particularly centrifugal pumps, where fluid acceleration and energy transfer are achieved through the impeller’s rotational motion.

The Motor: Energy Source - Mechanical Input

Every pump begins with mechanical energy supplied by a motor. The pump shaft, connected to a motor, transmits rotational motion to the impeller, serving as the driving force for fluid acceleration. The efficiency and performance of any pump depend on how effectively this mechanical energy input is converted into kinetic and pressure energy within the fluid.

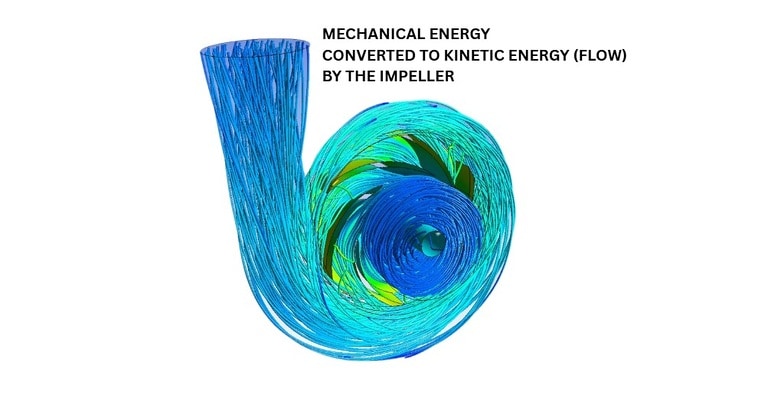

The Impeller: Energy Converter – Mechanical to Fluid

As the shaft rotates, the impeller’s curved blades act as energy transfer surfaces, applying force to the fluid within the blade passages, in accordance with Newton’s Second Law of Motion. This force accelerates the fluid from the center or eye of the impeller radially outward toward the periphery. The resulting increase in velocity represents the direct conversion of mechanical energy into kinetic energy, the energy of motion.

As the impeller rotates faster, it imparts greater tangential velocity to the fluid, increasing its kinetic energy. This outward acceleration, caused by a combination of centrifugal force and the dynamic action of the blades, alters both the speed and direction of the fluid, producing a rise in the total pressure of the fluid and hence serving as the true source of head development within the pump. By directing and accelerating the fluid, the impeller transforms mechanical shaft power into primarily kinetic energy, forming the core of pump performance and head generation. The subsequent flow of the fluid through the stationary passages of the pump enables the conversion of most this kinetic energy into potential energy in the form of static pressure within the contained fluid flow.

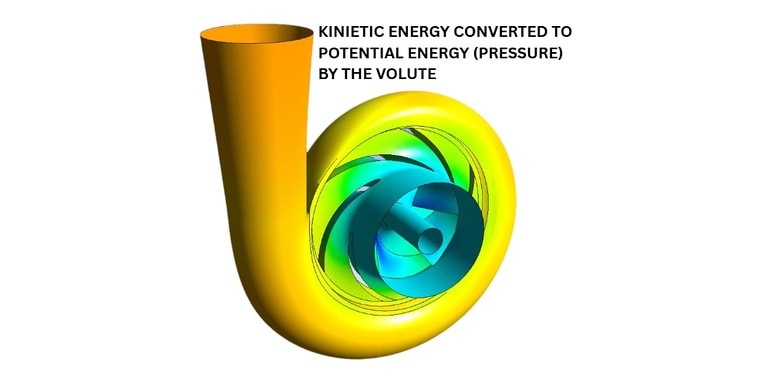

The Volute: Energy State Transformer – Velocity to Pressure

After leaving the impeller, the high-velocity and hence high kinetic energy fluid enters the volute casing, where the passage area progressively collects the fluid and then widens. This expansion of the stationary flow passage area slows down the fluid, a process called diffusion, which causes a partial conversion of the velocity head in the flow to pressure head, in accordance with Bernoulli’s Principle. The resulting static pressure increase in the flow enables the fluid to overcome the net system resistance, caused by sources such as pressure drop across pipe bends, fittings, and valves, etc., as well as friction loss in pipes, and still maintain continuous flow.

Conclusion

A pump’s operation is a smooth and seamless transformation of energy. Mechanical input from the motor drives the impeller, which accelerates the fluid and converts rotational motion into kinetic energy. This kinetic energy is then partially transformed into potential energy, enabling the fluid to overcome resistance and flow through the system. Throughout this process, the law of conservation of energy governs every step: energy is never lost, only converted from one form to another. Understanding these mechanics highlights the critical role of each component in efficiently transferring energy and maintaining efficient and reliable pump performance.

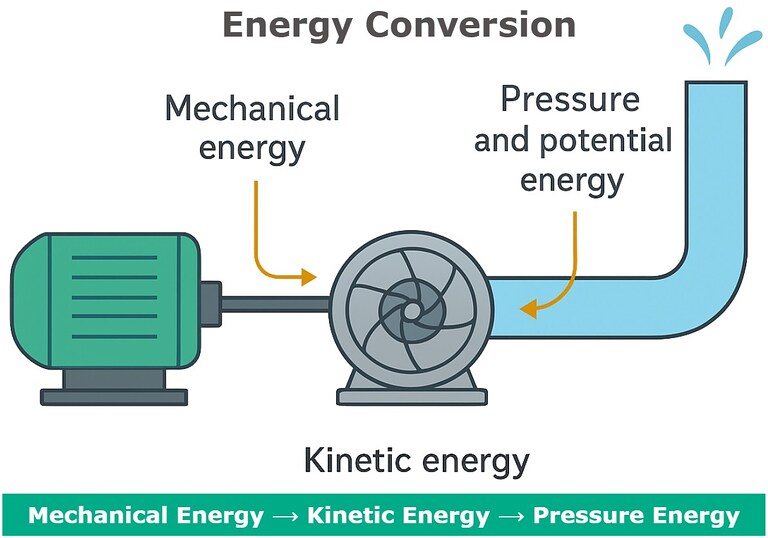

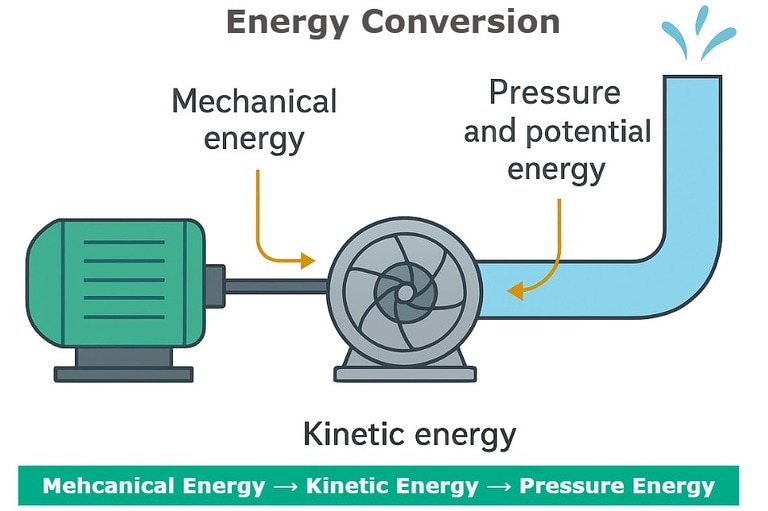

Energy Conversion Summary:
