Multivert MVISE 210-3G

Tender text

Multistage, non self-priming, vertical high-pressure centrifugal pump in in-line design with three-phase glandless pump motor and integrated frequency converter.

The integrated frequency converter enables variable speed control.

Control modes

  • Mode 1: Manual speed control with rotary knob
  • Mode 2: Pressure control via 4-20 mA or 0-10 V sensor signal or other control (temperature, volume flow, etc.) possible, setpoint adjustment with rotary knob or an external 0-10 V or 4-20 mA signal
  • Mode 3: Speed control via external 0- 20 mA or 0-10 V signal

A short-circuit-proof +24 V voltage output with max. contact strength of 50 mA is present on the electronic module. The module has potential-free contacts for SSM and SBM, potential-free contacts for external ON/OFF operation as well as integrated motor protection with detection of missing phase, detection of low water and display of the error code on the display. A plug-in position for Wilo IF-Modules PLR, LON for connection to building automation is present.

The pump has a self-venting, compact design with a continuous motor/pump shaft and bearings on the motor side. All hydraulic parts which come into contact with the fluid are made of stainless steel. The connection is established by means of oval flanges.

The pump is suitable for water and pressure boosting.

Special features/product advantages

  • Glandless pump technology
  • Virtually noiseless operation (up to 20 dB [A] quieter than conventional pumps)
  • Space-saving, compact design
  • Virtually maintenance free thanks to a design which does not feature any mechanical seals
  • Drinking water approval for all components that come in contact with the fluid (EPDM version)

Scope of delivery

  • Wilo-Multivert MVISE high-pressure multistage centrifugal pump
  • Installation and operating instructions
  • Stainless steel oval counter flanges with the corresponding screws, nuts and gaskets

Design notes

  • Optional plug-in IF-Modules
  • Sensors are available as accessories.
Operating data
  • Fluid media
    Water
Product data
  • Min. fluid temperature Tmin
    -15 °C
  • Max. fluid temperature Tmax
    50 °C
  • Max. ambient temperature Tmax
    50 °C
  • Maximum operating pressure PN
    16 bar
  • Maximum inlet pressure p inl
    10 bar
Motor data
  • Electromagnetic compatibility
    EN 61000-6-1, -2, -3, -4
  • Mains connection
    3~400 V, 50/60 Hz
  • Voltage tolerance
    ±10 %
  • Rated power P2
    2.00 kW
  • Rated current IN
    6.50 A
  • Min. speed nmin
    1000 rpm
  • Max. speed nmax
    2900 rpm
  • Insulation class
    F
  • Protection class
    IP44
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4122
  • Gasket material
    EPDM

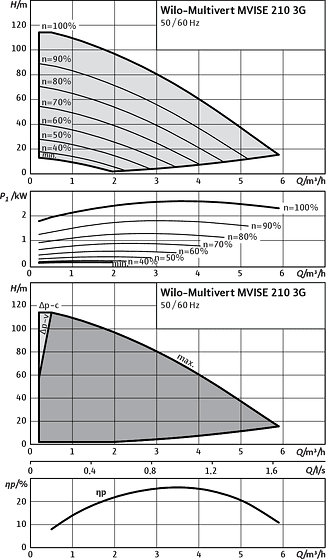

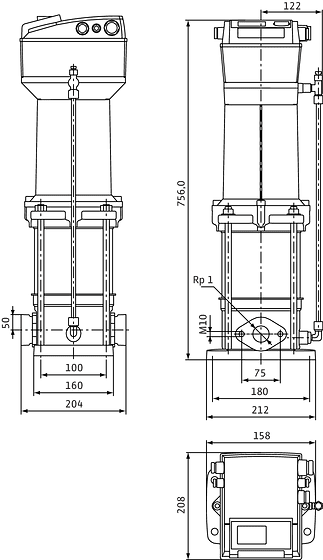

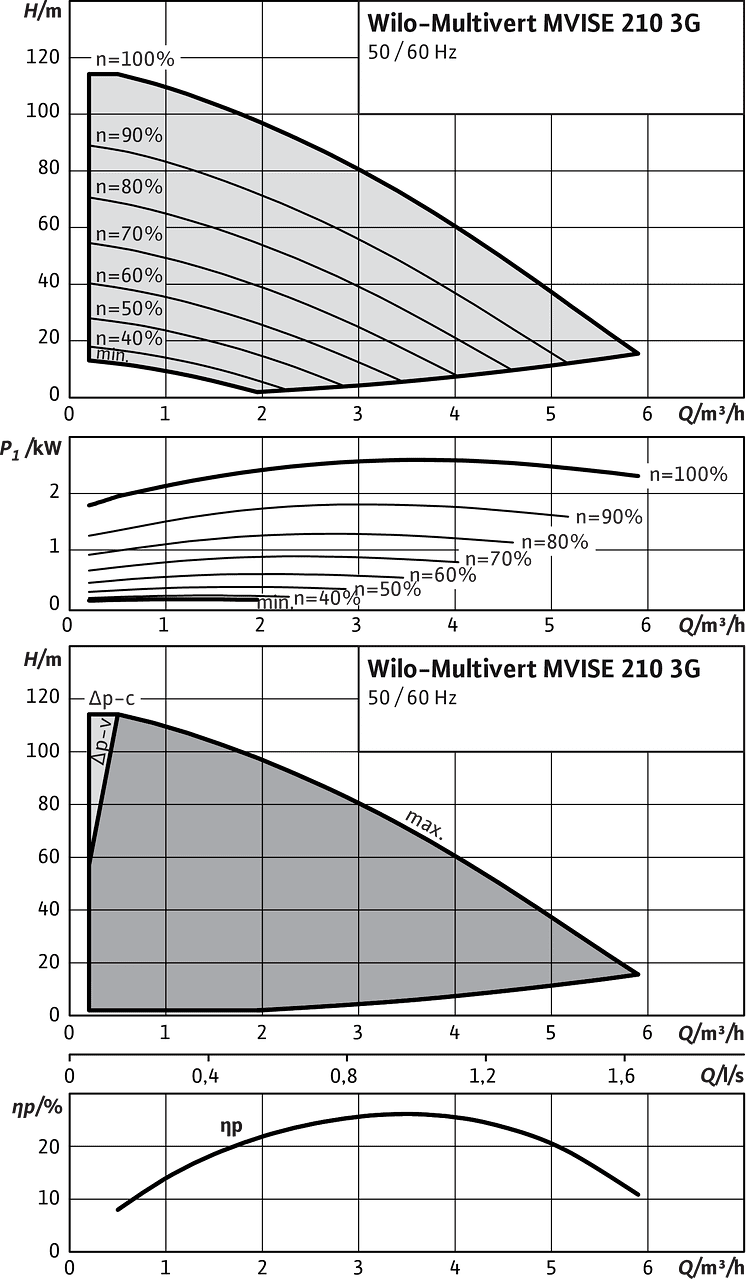

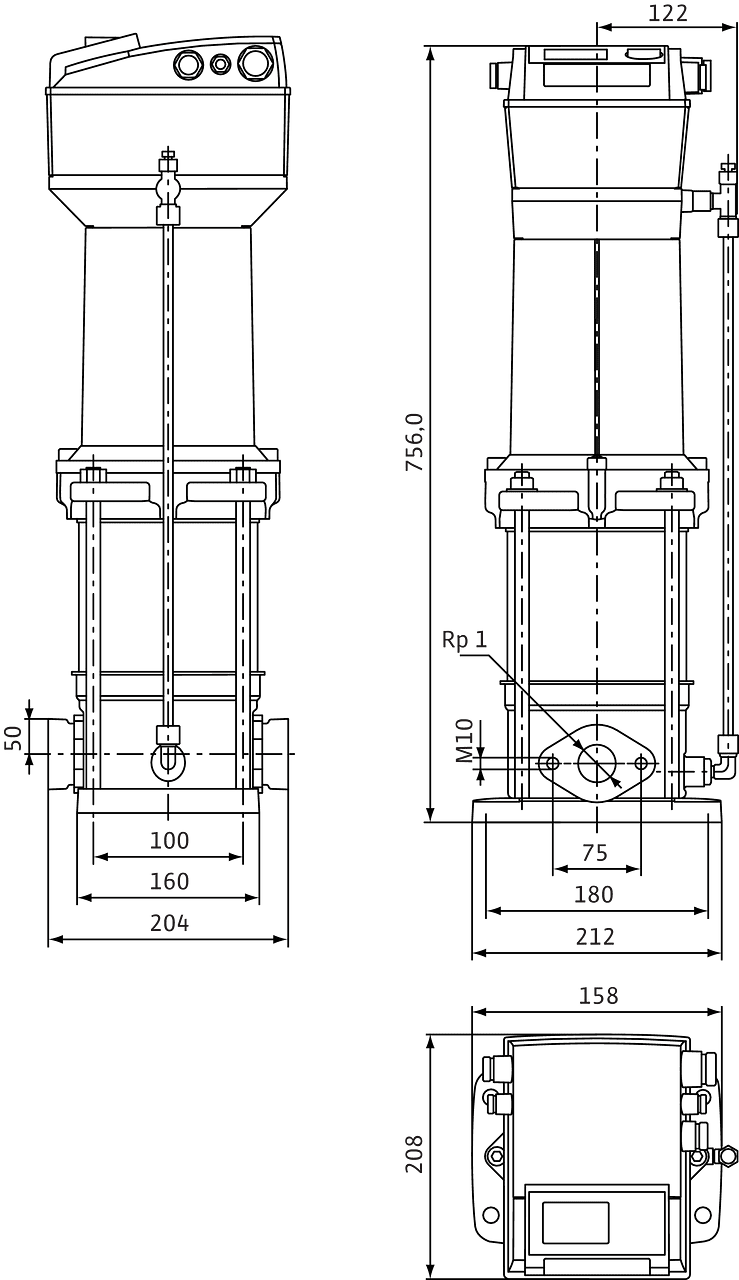

Installation dimensions
  • Pipe connection on the suction side RPS
    G 1
  • Pipe connection on the pressure side RPD
    G 1
Information for order placements
  • Brand
    Wilo
  • Product description
    Multivert MVISE 210-3G
  • Net weight, approx. m
    35 kg
  • Article number
    4225620

Wiring diagram

3~400 V ≤7.5 kW

3~400 V ≤7.5 kW
3~400 V ≤7.5 kW

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Multivert MVISE 210-3G
  • EAN number
    4048482836317
  • Article number
    4225620
  • Gross weight, approx. m
    40.0 kg
  • Net weight, approx. m
    35 kg
  • Overall length L
    224.0 mm
  • Height without packaging H
    756 mm
  • Colour
    Green/black/silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    212.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1
