FramePumps™

Scot Pump Agricultural FramePumps™ are available in a variety of pump types below.

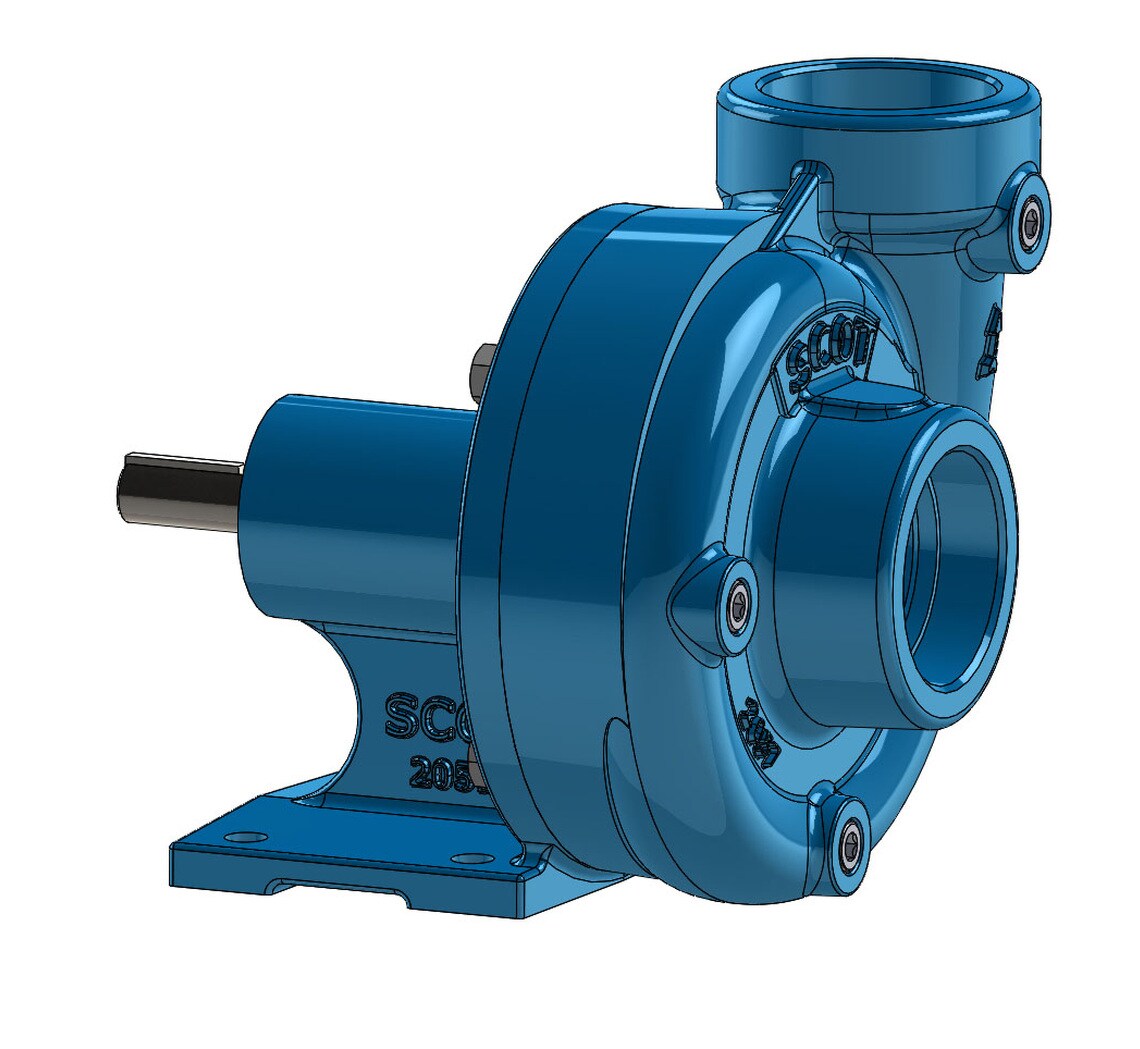

Framepump

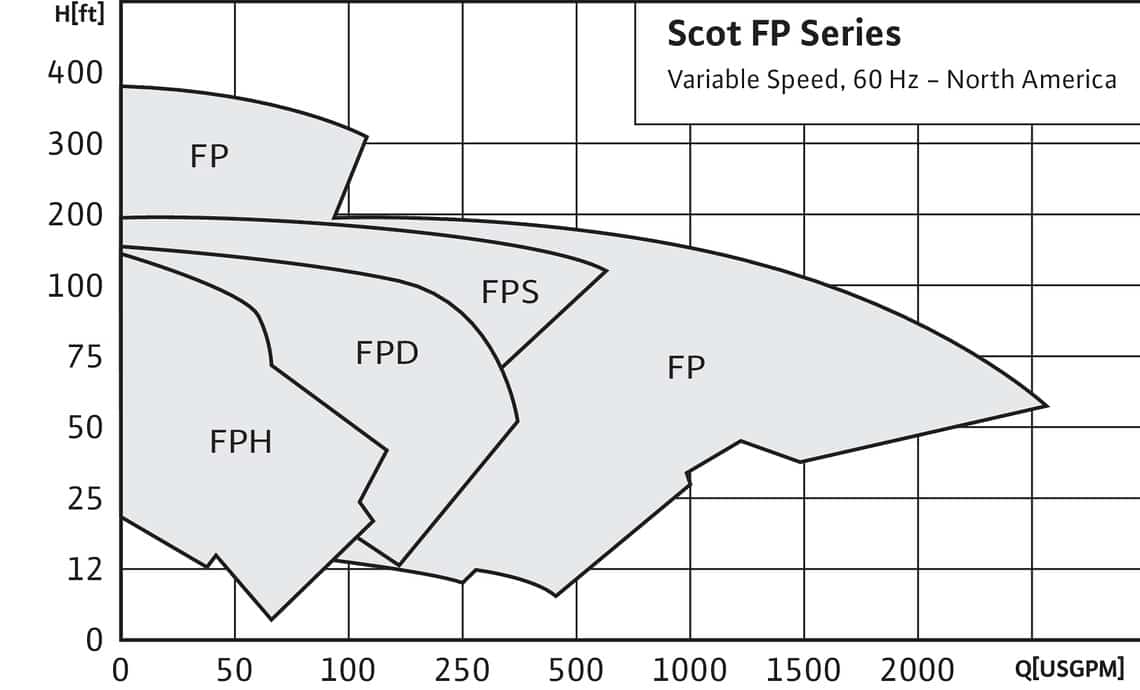

602VS Curve Update 2023

Features & Benefits

  • Capacity to 350 GPM
  • 140 Foot Head
  • 5.63" Max. Impeller
  • Variable Speed

Download Spec Sheet

Contact a Distributor

Group Features

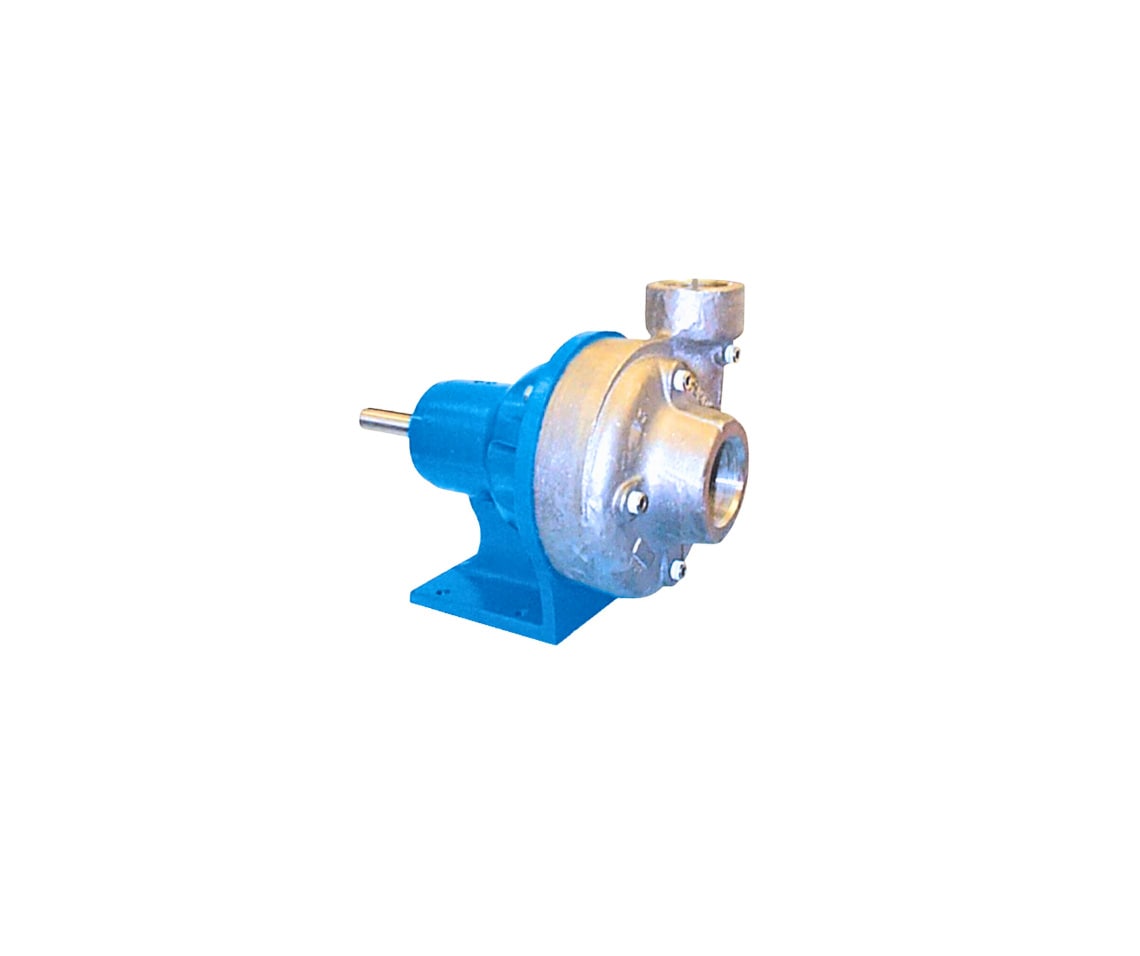

  • Cast 316 stainless steel construction.
  • All wetted parts are 316 stainless steel.
  • Replaceable Stainless steel shaft sleeve.
  • Impeller is keyed to shaft and secured by a Stainless Steel retaining ass'y.


Mechanical Seal:

  • Viton - Carbon\Ceramic - Standard.
  • Viton - Silicon Carbide\Silicon Carbide optional .

Bearing Frame:

  • Cast iron frame
  • Double sealed ball bearings
  • Stainless steel shaft
  • Milled base for positive alignment.
Framepump
Framepump

Features & Benefits

  • Hydraulic models have SAE 22-4 splined pump and motor shaft with coupling
  • Double mechanical seal Viton - Ceramic - Stainless Steel Severe duty available
  • Pump may be run dry without affecting seal
  • Pump and expansion tank are factory assembled and ready for installation
  • Seal chamber, hose and expansion tank system are filled with 50%/50% glycol/water solution and pressurized air at Scot factory
  • Variable Speed

Contact a Distributor

Group Features

  • All iron or cast 316 stainless steel construction
  • Cast iron bearing frame
  • Replaceable Stainless steel shaft sleeve
  • Impeller is keyed to shaft and secured by a Stainless Steel retaining ass'y
  • Expansion tank has mounting holes in each flange and includes 6-ft reinforced flexible hose for remote installation
  • Includes ½" liquid fill plug, air valve and pressure gauge
  • Expansion tank body is made of clear Lucite and allows complete visibility of Pressurseal® fluid level

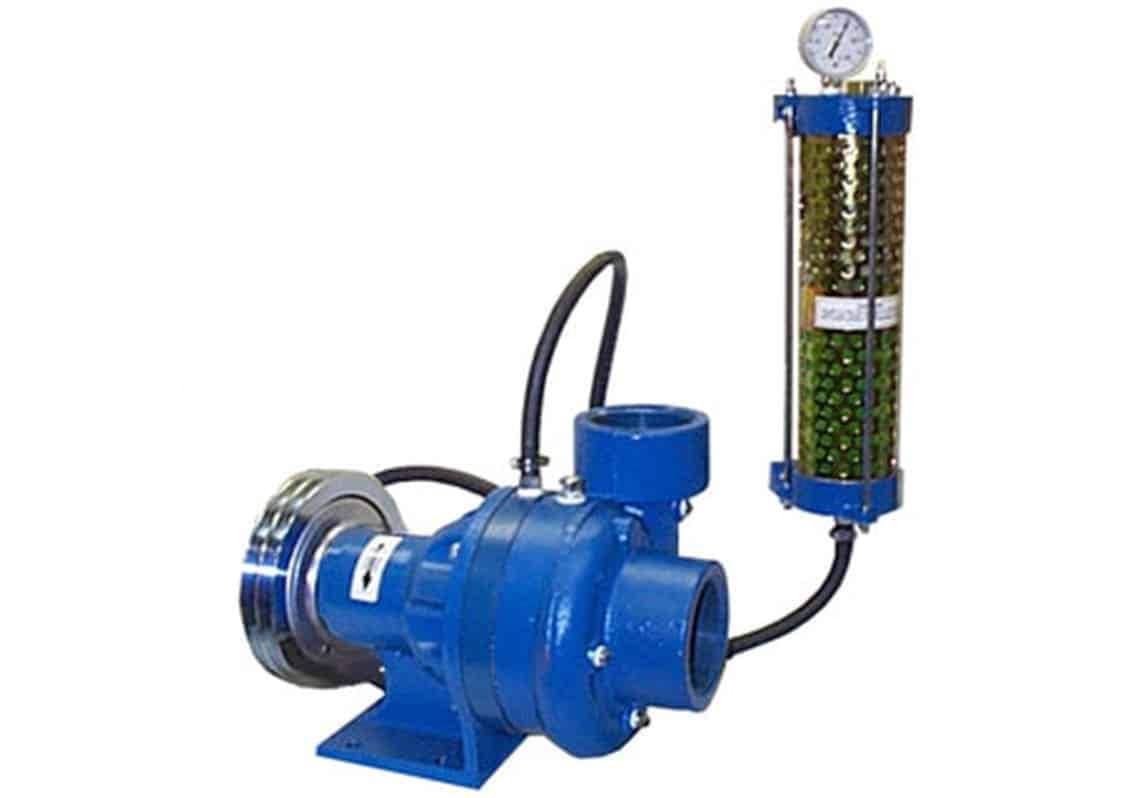

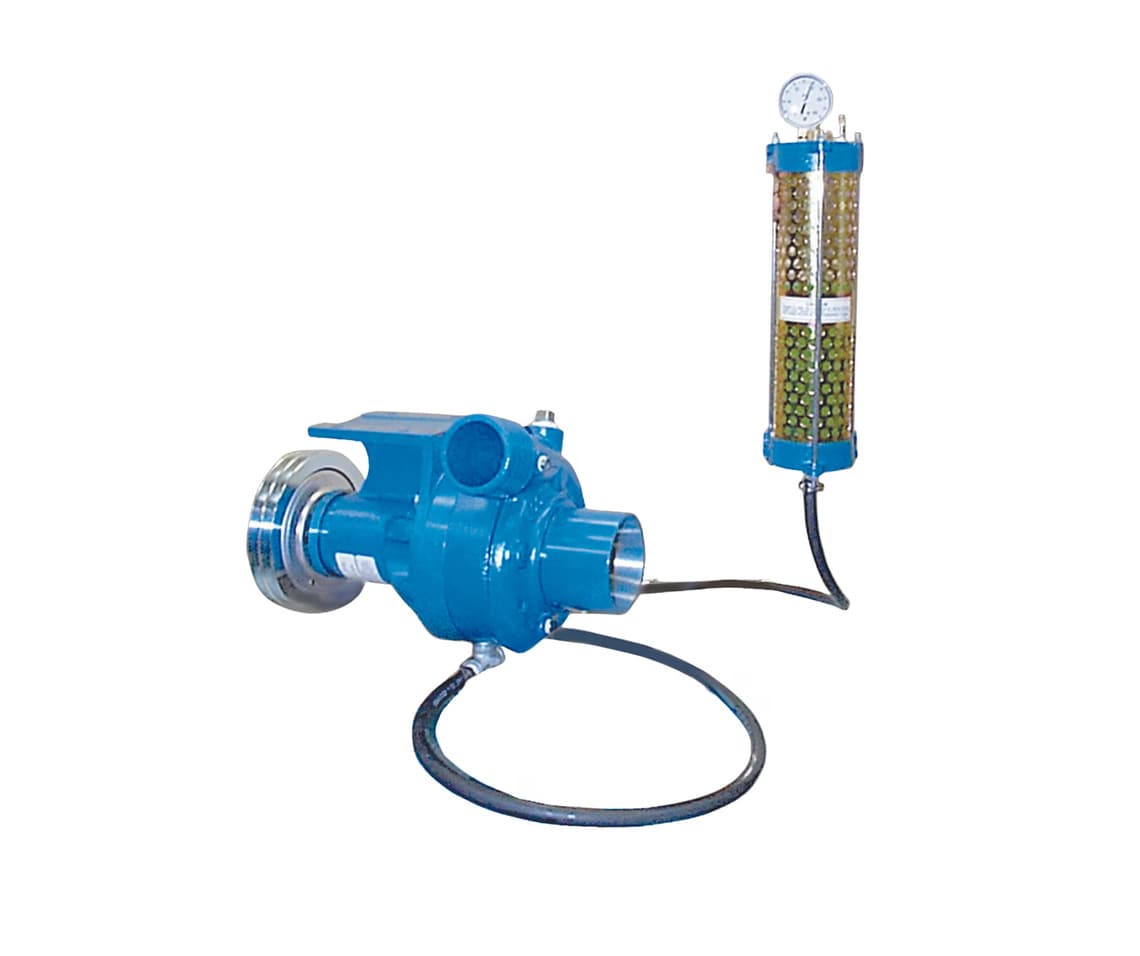

Scot Pump Pressurseal® Models

The Pressurseal® pump kit will give trouble-free performance day in and day out; no matter what fluid you are pumping. This workhorse is designed for the toughest jobs, and all you have to do is follow the simple operating instructions and watch it work.

Mount Pressurseal® tank so that it is higher than the highest part of the pump itself. If the chamber is below the pump, liquid may siphon back into the pressure chamber.

Mount the pump so that vibration is minimal. The pump is designed to withstand abuse, but like any precision machine, the less the abuse, the longer its life.

There are two things to watch while the pump is working, (1) the pressure gauge and (2) the liquid level. To understand why, here is a short explanation of how this superior pump works: The liquid (ethylene glycol or standard good grade antifreeze) in the seal chamber and Pressurseal® tank (which you can see rising to a height of about five inches above the bottom of the Lucite tube) is under pressure. This liquid must always be at higher pressure than the liquid being pumped. It is this liquid (under pressure) in the seal chamber that is lubricating the face of the pump seal.

The presence of liquid lubricating the pump seal in the seal chamber is the reason you can run the pump dry; it is always lubricated from within by the pressurized liquid.

The pump will be delivered filled and pressurized with the gauge reading between 100 and 125 PSI. It is important that you check the pressure gauge at regular intervals to be sure the pressure does not fall below 100 PSI. Optimum working pressure is 125 PSI.

It is also important to check the level of fluid. The liquid will not extrude through the seals very quickly. Only a molecule thickness of liquid it required to lubricate the seal. Rapid loss of fluid should never occur. If it does, it may indicate a broken seal or loose-fitting seal chamber. When the liquid level decreases to two inches above the bottom of the Lucite tube, it is time to refill.

When a refill is necessary follow these steps: Depressurize pressure chamber by releasing air from the air valve on the top of the Pressurseal® tank. Remove ½" fill plug at top of the seal tank and fill with 50% water. Liquid level should be about five inches above the Lucite tube (to fill line). Replace the fill plug and repressurize slowly. If you follow these instructions, the pump will give you the long service life and high performance you expect.

Download Pressurseal® Models Tech Sheet

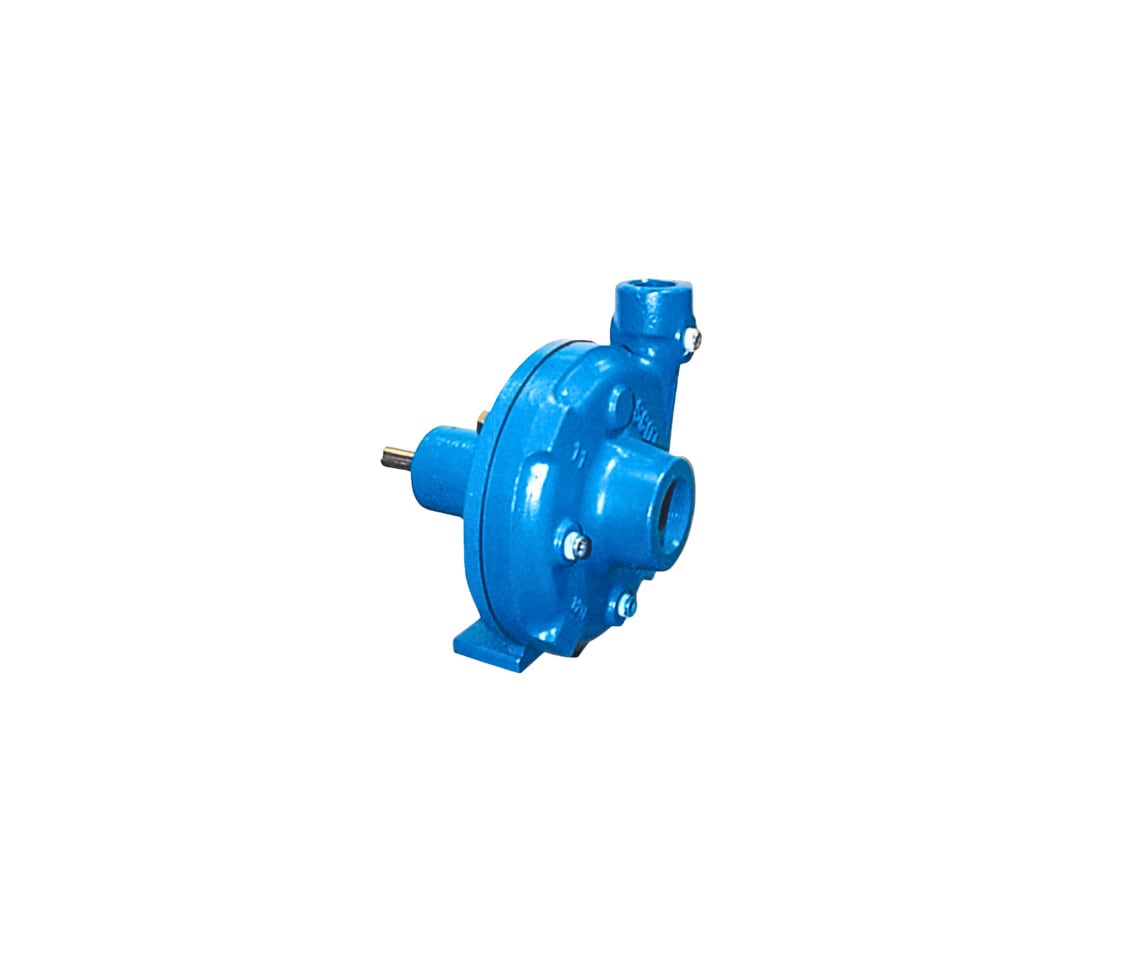

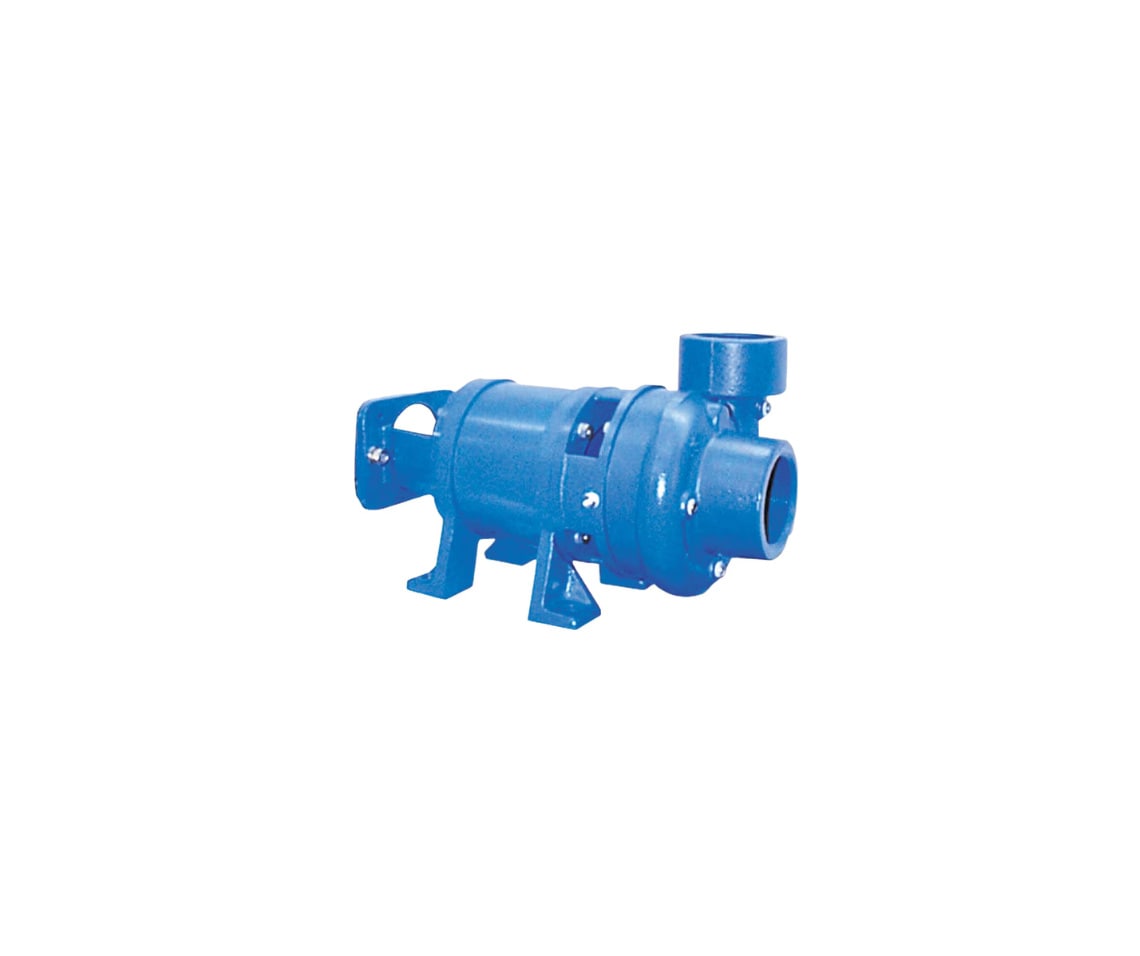

Framepump

Features & Benefits

  • Options for Capacity up to 2500 GPM
  • Options for up to 375 Foot Head
  • Options for 10" Max. Impeller working Pressure
  • Variable Speed
  • All models are Straight Centrifugal except the Model FPH 74, which is Self Priming
Contact a Distributor

Group Features

  • All Iron Construction
  • Hardened iron impeller available
  • Viton - Carbon/Ceramic Mechanical Seal is Standard, Silicon Carbibe optional
  • Replaceable SS shaft sleeve
  • Flanged to connect with 125 lb. Ansi B16.1 flanges
  • Impeller is keyed to shaft and secured by a Stainless Steel retaining ass'y.
  • Cast iron frame
  • Double Sealed ball bearings
  • Carbon steel shaft
  • Milled base for positive alignment
  • 5.5, 6.5, 8.0, 9.0, and 10.0" Impeller options
  • 5/8, 7/8, 1 1/8, and 1 3/8" Shaft options
Framepump

Features & Benefits

  • Capacity to 175, 350 GPM
  • 135, 140 foot head options
  • 4.38" 5.63" max impeller options
  • 7, 12 and 30 GPM hydraulic motor options

Contact a Distributor

Group Features

  • Cast stainless steel and all iron construction options
  • All wetted parts are 316 stainless steel available
  • Pump has SAE 22-4 splined shaft with coupling available
  • Hardened iron impeller available
  • Stainless steel hardware
  • Replaceable stainless steel shaft sleeve
  • SAE 22-4 splined shaft with coupling options

Download Hydraulic Motor Chart

Looking for More Information on our FramePumps™?

  • Log in to the Scot Pump Catalog Center to view our AutoCAD curves, 3D Models, exploded views, repair part numbers, IOM manuals and complete PDF data packets.
