Close-Coupled Pumps

Cast Iron

Application

Water Features
Water Parks

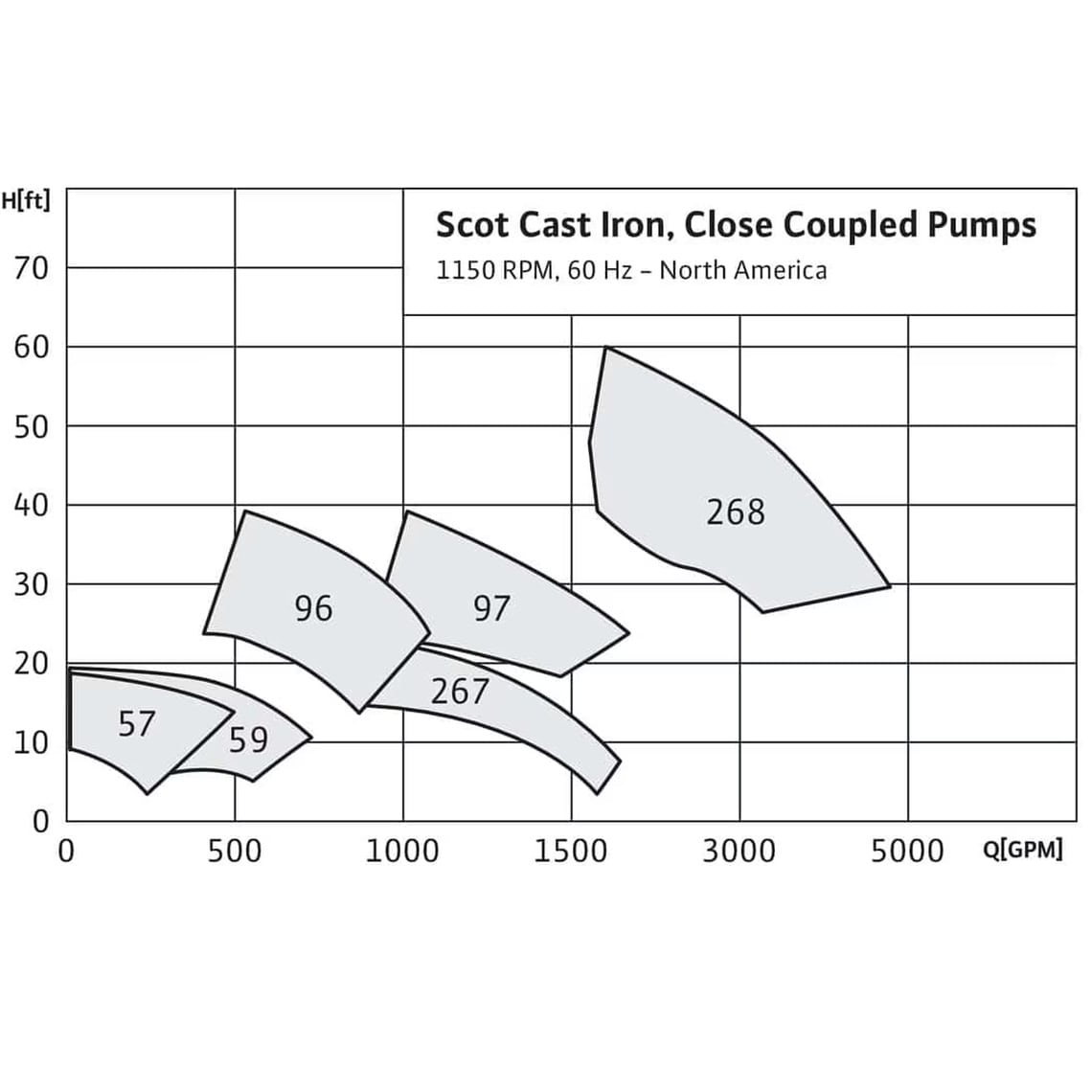

Max. Flow: 4,500 GPM

Max. Head: 60 feet

Contact a Distributor

Features & Benefits

Up to 50 HP and 10” Discharge
Heavy-Duty construction
Close-Coupled Back pull-out design
Mechanical Seal

Technical Data

NEMA 60HZ JM, JP, JPZ Frameƒ ODP, TEFC, Enclosures
6½” – 13” Max Impeller
Temp range: 0°F to 250°F
Max working pressure 175 PSI

Materials of Construction

ANSI Flange connections
Standard fitted
Bronze fitted
All Iron
Buna Carbon Ceramic Seal standard
EPDM, Viton & Silicon Carbide available

Application

Cooling Towers
Chillers
Plastic Injection Molding
Process Water Filtration & Circulation
Condensate Return
Heat Treating

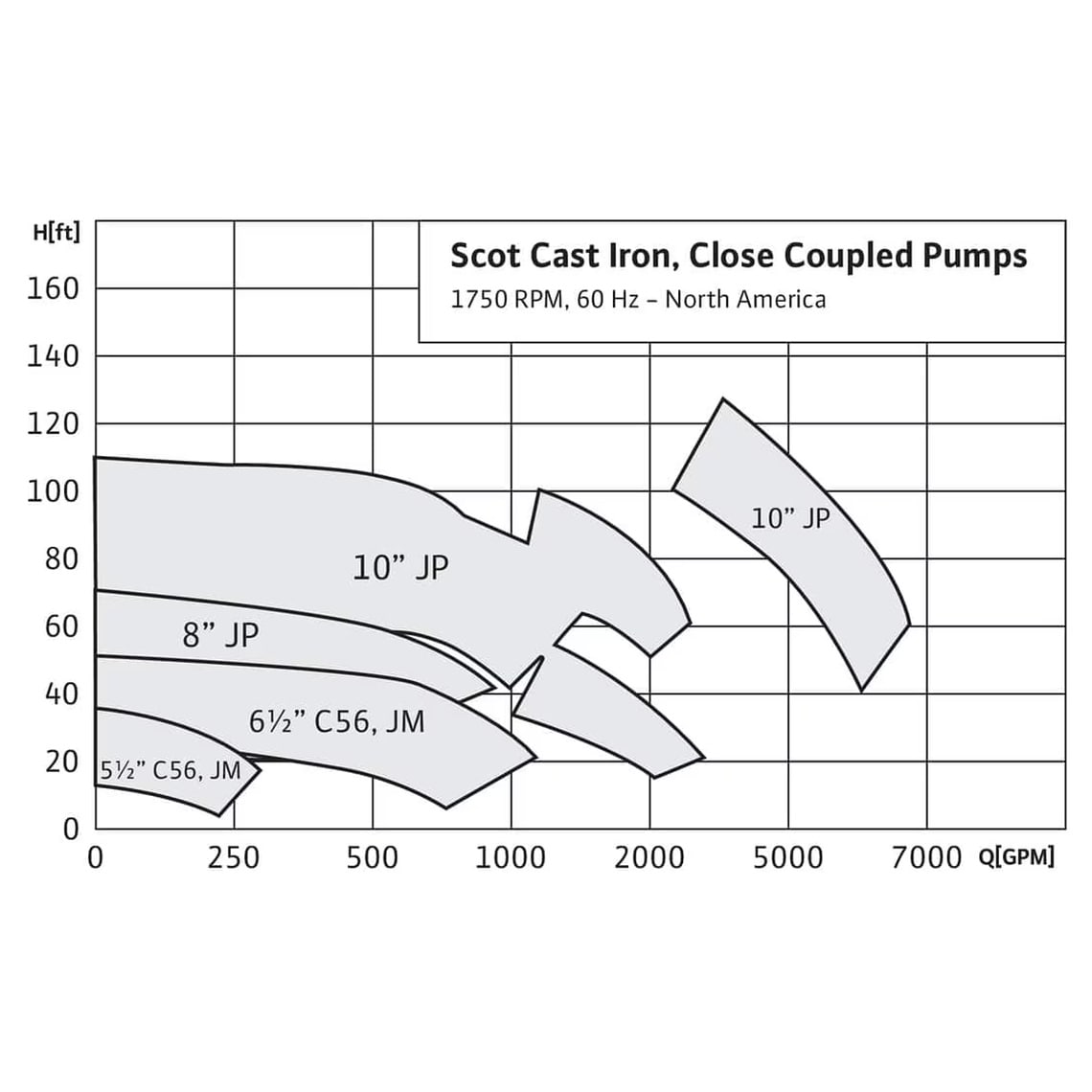

Max. Flow: 6,500 GPM

Max. Head: 150 feet

Contact a Distributor

Features & Benefits

Up to 150 HP and 10” Discharge
Heavy-Duty construction
Close-Coupled Back-Pullout design
Mechanical Seal

Technical Data

NEMA 60HZ C56, JM, JP, JPZ Frames
ODP, TEFC, Explosion-proof enclosures
5½” – 13” Max Impeller
Temp range: 0°F to 250°F
Max working pressure 175 PSI

Materials of Construction

NPT and ANSI Flange connections
Standard Fittedƒ Bronzeƒ Fitted or All Iron
Buna Carbon Ceramic Seal standard
EPDM, Viton & Silicon Carbide available

Application

Cooling Towers
Chillers
Plastic Injection Molding
Process Water Filtration & Circulation
Condensate Return
Heat Treating

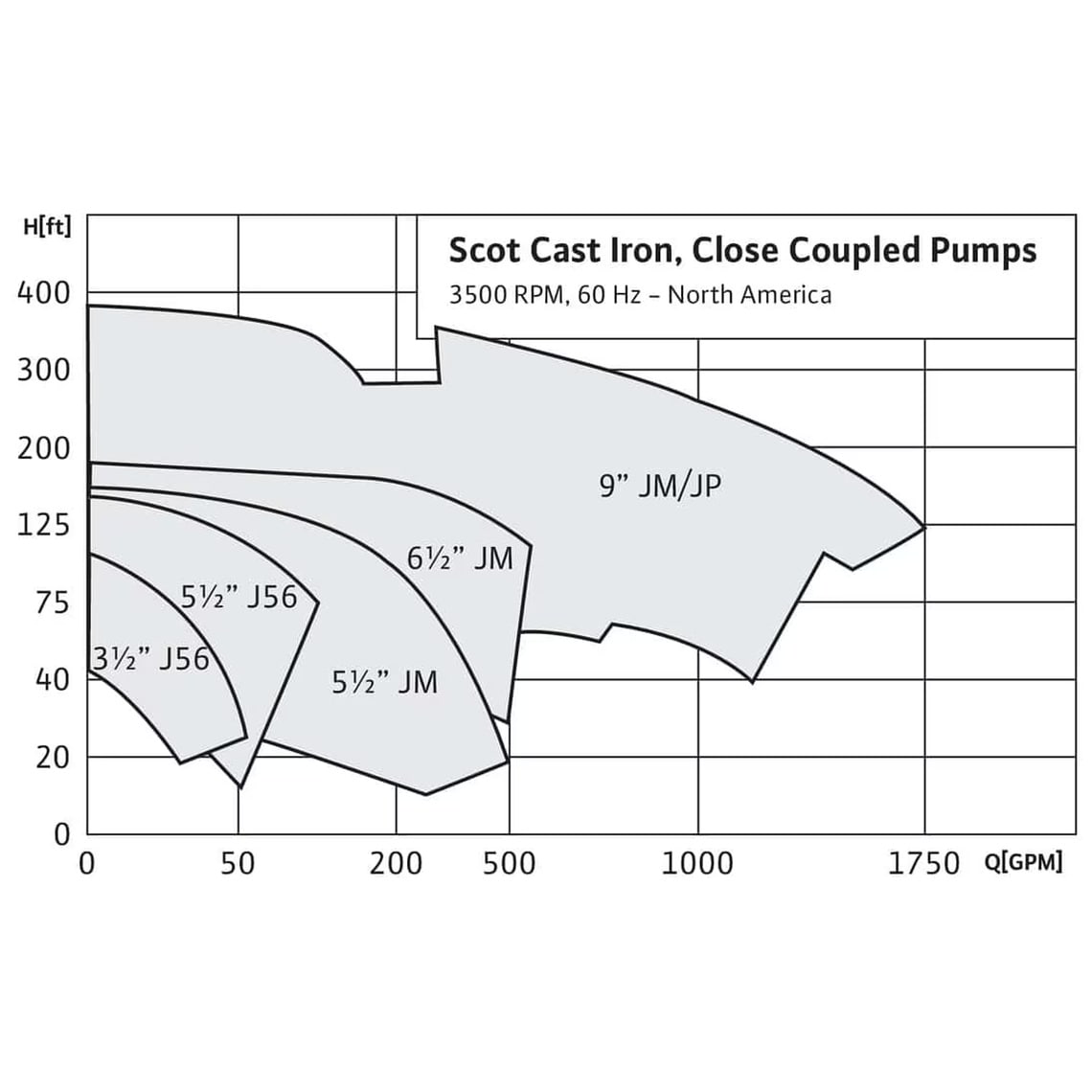

Max. Flow: 1,750 GPM

Max. Head: 375 feet

Contact a Distributor

Features & Benefits

Up to 100 HP and 8” Discharge
Heavy-Duty construction
Close-Coupled Back-Pullout design
Mechanical Seal

Technical Data

NEMA 60HZ, J56, JM, JP Frames
ODP, TEFC, Explosion-proof enclosures
3½” – 9” Max Impeller
Temp range: 0°F to 250°F
Max working pressure 175 PSI

Materials of Construction

NPT and ANSI Flange connections
Standard fitted
Bronze fitted
All Iron
Buna Carbon Ceramic Seal standard
EPDM, Viton & Silicon Carbide available

Looking for More Information on our Close-Coupled Frame Pumps?

Log in to the Scot Pump Catalog Center to view our AutoCAD curves, 3D Models, exploded views, repair part numbers, IOM manuals and complete PDF data packets.

Visit Catalog Center
