Marine Straight Centrifugal MotorPumps™
Straight Centrifugal Pumps
Application
- Air Conditioning
- Refrigeration
- Cooling Water Circulation
Max. Flow: 90 GPM
Max. Head: 48 feet
Submit a Quote RequestFeatures & Benefits
- .33 to 1 HP
- 3500 RPM, 60 Hertz
- Capacity to 90 GPM
- 50 Foot Head
- 3.44" Max. Impeller
- 75 Max Working Pressure
Technical Data
- NEMA 60HZ J56, C56, JM Frames
- TEFC Motor is standard
- NPT connections

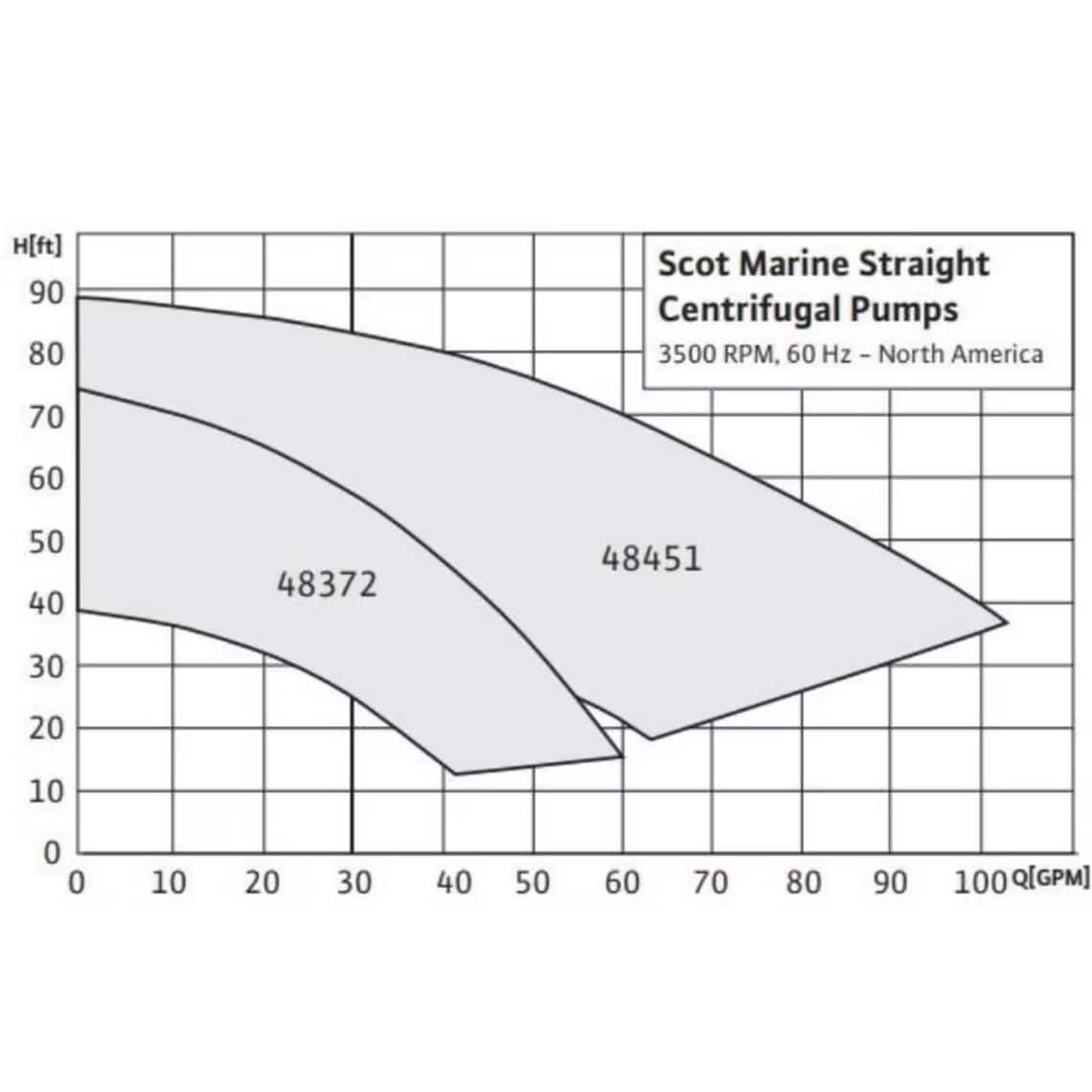

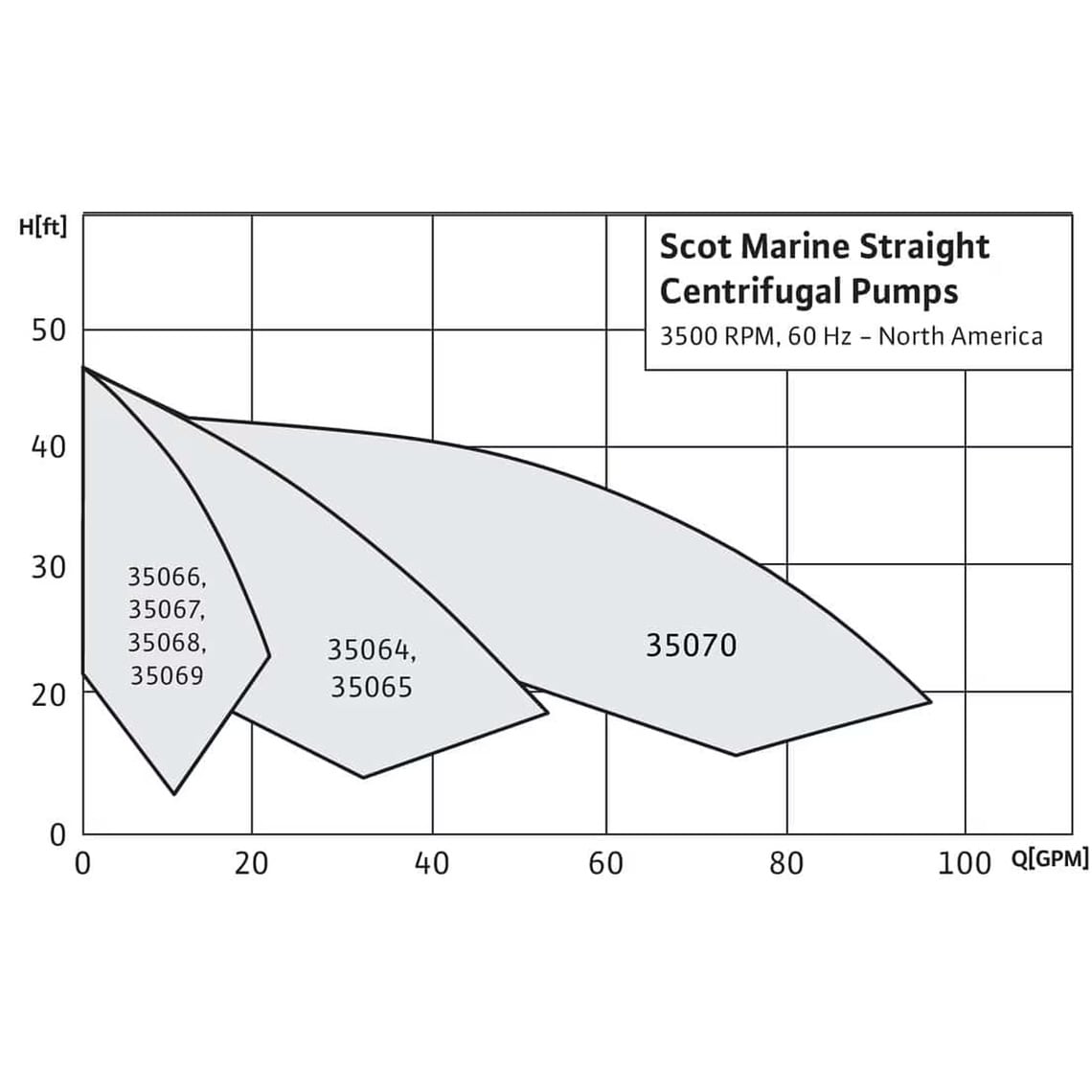

- Range Charts (Log-in to View)
Materials of Construction
- Marine Bronze Case, Impeller and Adapter
- Hardware - type 303 Stainless Steel
- Stainless steel motor shaft
Mechanical Seal:
- Seawater Buna rubber parts, ceramic stationary and carbon rotating element, seawater stainless steel spring and metal components.
Application
- Air Conditioning
- Refigeration
- Chilled Water Circulation
Max Flow: 110 GPM
Max Head: 90 feet
Submit a Quote RequestFeatures & Benefits
- Heavy Duty Cast Bronze Construction
- Close Coupled-Back Pullout Design
- Semi-Open Impeller
- Continuous Duty Motor
Technical Data
- NEMA 50/60HZ Motors
- TEFC Motor is Standard
- NPT Connections
- Range Charts (Log-In to View)
Materials of Construction
- Marine Bronze Case, Impeller and Adapter
Application
- Air Conditioning
- Refrigeration
- Chilled Water Circulation
Max. Flow: 400 GPM
Max. Head: 130 feet
Submit a Quote RequestFeatures & Benefits
- Heavy-duty cast construction
- Close-coupled back pull-out design
- Enclosed impeller
- Continuous duty motor
Technical Data
- NEMA 60HZ JM Frame
- NPT connections
- TEFC Motor is standard
- Range Charts (Log-In to View)
Materials of Construction
- Marine Bronze Case, Impeller and Adapter
Looking for More Information on our Marine Straight Centrifugal Pumps?
Login to the Scot Pump Catalog Center to view our AutoCAD curves, 3D Models, exploded views, repair part numbers, IOM manuals and complete PDF data packets.
Visit Catalog Center
