TR 50 - TR 120

Submersible Mixers

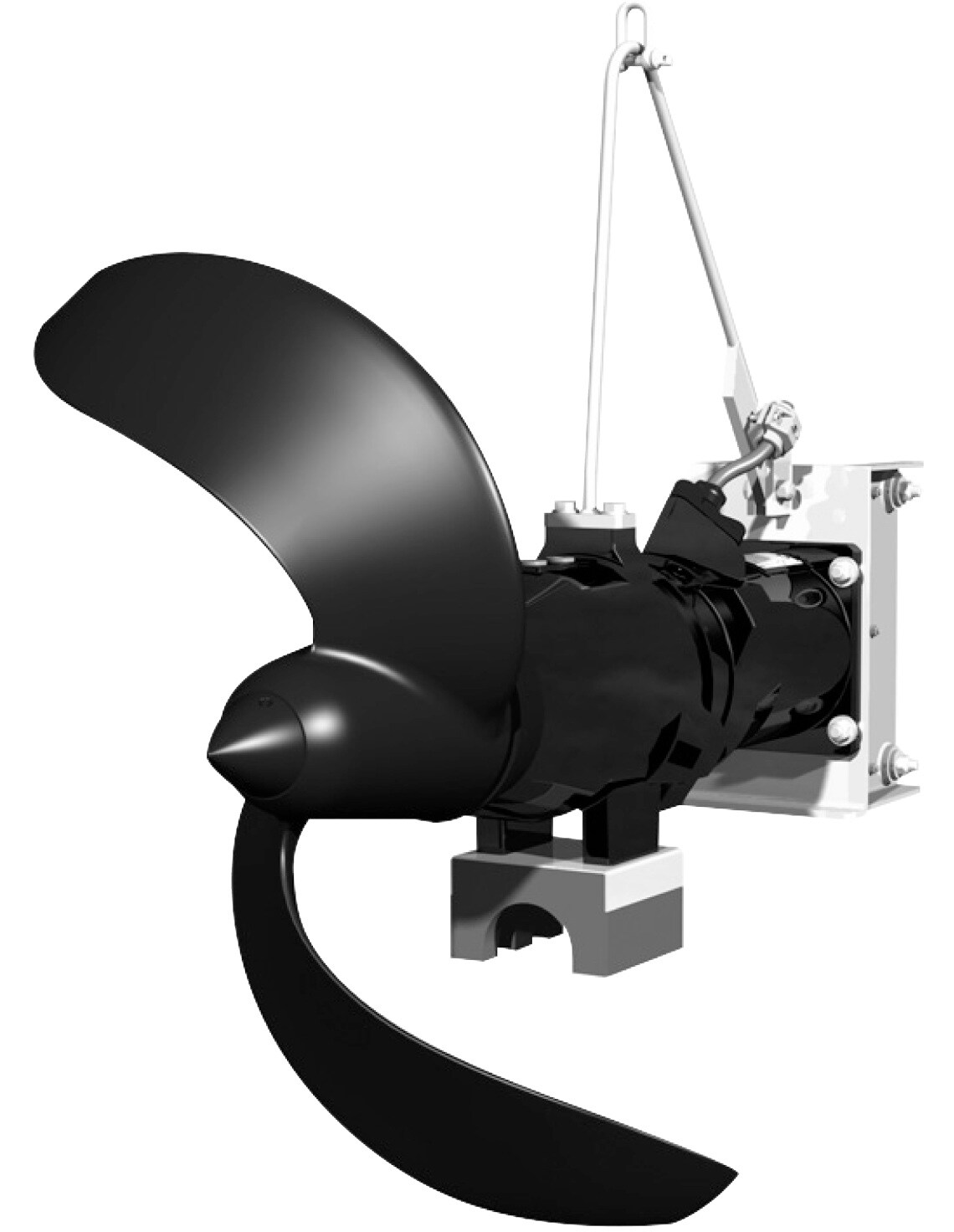

mixer uniprop w gear tr90-2 pic 3d 01

Application

  • Creation of fluid current in activated sludge tanks
  • Suspension of solids
  • Prevention of floating sludge layers
  • Industry & Agriculture
  • Water supply
  • BNR

Thrust: 78 - 886 lbf (350 - 3940 N)

Features & Benefits

  • Stationary installation on walls
  • Flexible installation
  • Single-stage planetary gear for adjusting the propeller speed
  • Self-cleaning propeller
  • Easy-to-install propeller attachment
  • Type “TRE” with IE3 performance optimized motors
  • ATEX and FM versions

Technical Data

  • Submerged operating mode: S1 (continuous duty)
  • Max Temp: 104°F (40°C)
  • Protection class: IP 68
  • Single-stage planetary gear
  • Permanently lubricated anti-friction bearing

Materials of Construction

  • Steel, PUR or PUR/GFK Propeller
  • Stainless Steel Gear Shaft
  • SiC/SiC Combination Mechanical Seal
