IL

Inline Centrifugal Circulators

Application

  • Hot Water Heating systems
  • Closed Cooling Circuits
  • Air Conditioning
  • Industrial Circulation
  • Solar
  • Geothermal

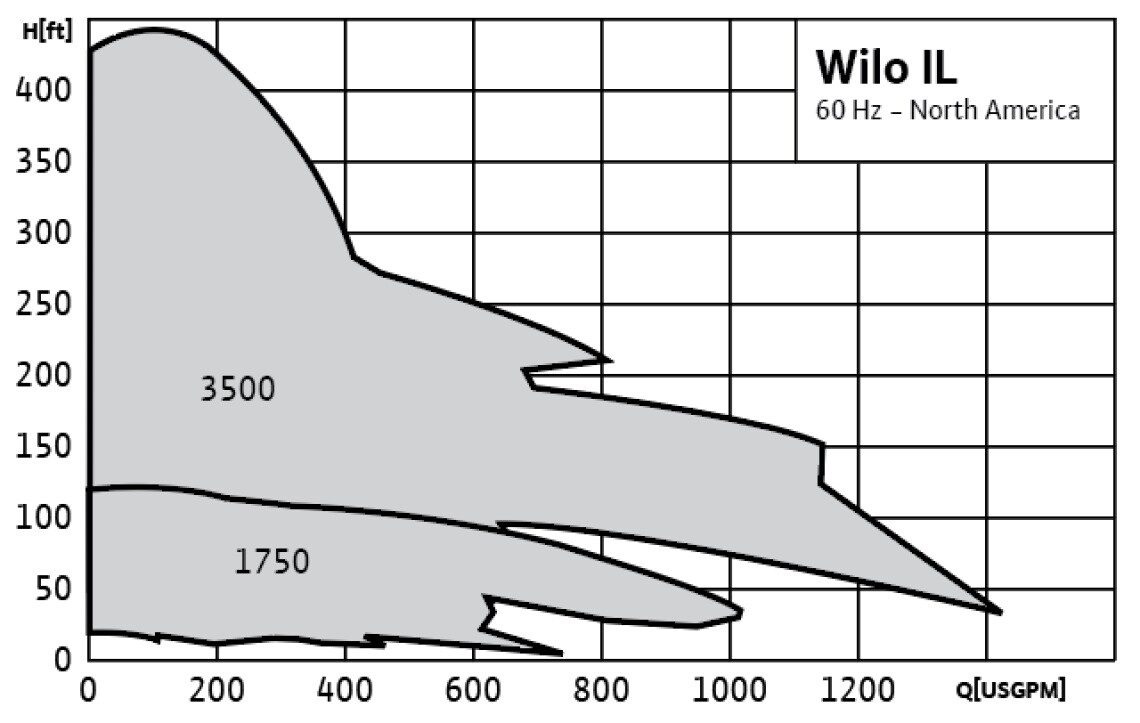

Max. Flow: 1450 GPM

Max. Head: 440 feet

Features & Benefits

  • Integral suction diffuser cast in volute inlet
  • All bolts “non-metric”
  • Pump feet drilled and tapped
  • Class 125 ANSI standard flanges

Technical Data

  • TEFC motors standard (ODP available)
  • Fluid Temp Range: -5°F to 285°F (-20°C to140°C)
  • Max Amb Temp: 104°F (40 °C)
  • Electrical Connections: 1~115v, 230v3~208-230v, 460v, 575v

Materials of Construction

  • Cast Iron, Cataphoresis Coated Volute
  • Trimmable Bronze Impeller
  • Stainless Steel Stub Shaft
