Wilo-VeroLine-IPL
IPL
Your advantages
- Integrated suction straightening vane
- Pump feet drilled and tapped
- Class 125 ANSI standard flanges
- Suction and discharge pressure gauge tappings
- Lifting eyes for easy installation
Recommended services
VeroLine-IPL
Design
Single stage inline, flanged, long coupled, mechanical sealed dry rotor pump
Application
Hot Water Heating Systems
Closed Cooling Circuits
Air Conditioning
Industrial Circulation
Solar
Geothermal

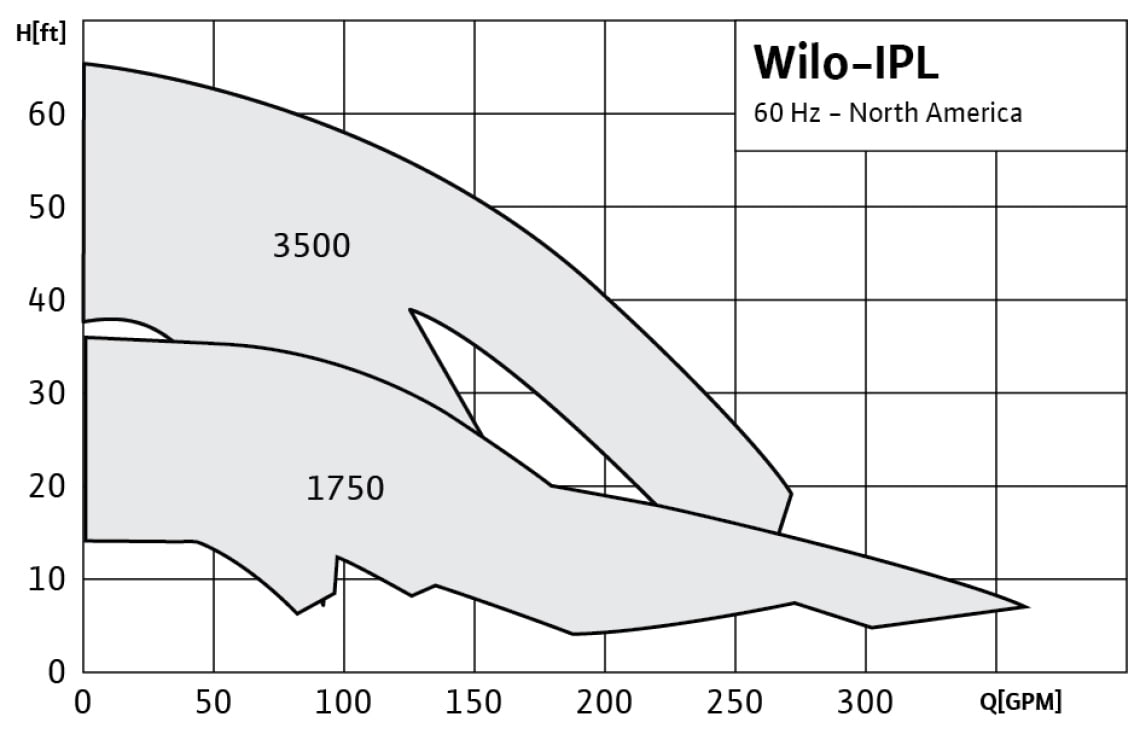

Max. Flow: 400 GPM
Max. Head: 65 feet
Equipment/function
- Coupled to motor via one piece coupling
- Standard NEMA frame Baldor motor
Typekey
IPL 1.25‐21/50‐2 | |
IPL | Inline flanged ended pump |
1.25 | Pipe connection in inch |
21 | Maximal head in feet |
50 | Maximal capacity in US gpm |
2 | Number of Poles4=1750 rpm, 2=3500rpm |
Technical data
- TEFC motors standard (ODP available)
- Fluid Temp Range: 15°F to 250°F (-10°C to 120°C)
- Max Amb Temp: 104°F (40 °C)
- Electrical Connection: 1~115v, 230v3~208-230v, 460v, 575v
- Flange connection: 1 ½" to 3" with ¼" pressure gauge tappings
Materials
- Cast Iron, Cataphoresis Coated Volute
- Engineered Composite Impeller
- Stainless Steel Stub Shaft
- 2-Part Epoxy Paint
Construction
- Single stage low pressure centrifugal, inline design with mechanical seal
- Baldor NEMA standard motors
Scope of delivery
- Pump and motor (optionally pump end only)
- Installation and operating instructions
Installation and operating instructions
Certification booklet
Wilo-VeroLine-IP-E, Wilo-VeroTwin-DP-E, Wilo-VeroLine-IPL, Wilo-VeroTwin-DPL, Wilo-VeroLine-IPL-N, Wilo-VeroTwin-DPL-N, Wilo-VeroLine-IPH, Wilo-BM/BM-B/BM-S, Wilo-VeroLine-IP-Z
| Article Number | 2216679 |
| Edition | 2022-11 |
| Number of pages | 60 |
| Language | language neutral |
PDF (22 MB)
