Base Mount End Suction Pumps


  • Heating and Cooling Systems
  • Transfer and Pressure Boosting
  • Boiler Feed/Condensate
  • Irrigation
  • Industrial Applications

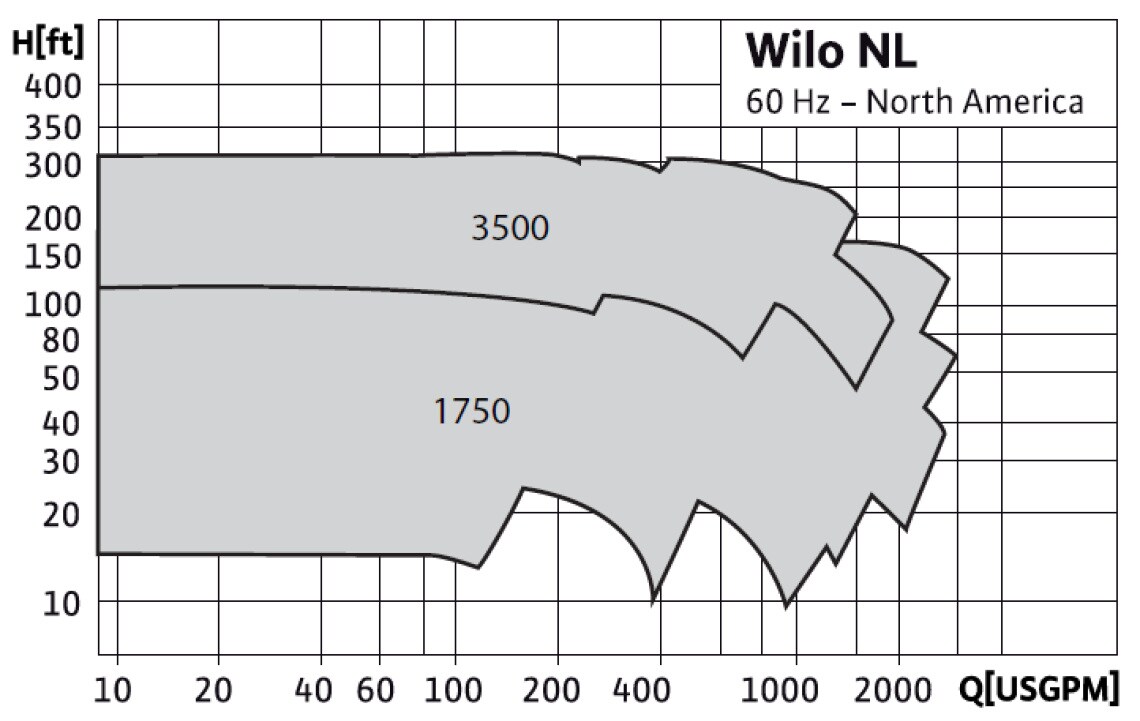

Max. Flow: 2,500 GPM

Max. Head: 300 feet

Features & Benefits

  • Back pullout design allows replacement of bearings and seals without disturbing the piping
  • Three bearing bracket sizes for all models
  • Confined gasket between cover and casing
  • Maintenance-free ZZ bearings
  • Improved hydraulics for reduced vibration
  • Over 50 models available

Technical Data

  • Temp Range: -5°F to 250°F (-20°C to 121°C)
  • Horsepower Range: 1-75HP (3500RPM) ½-200HP (1750RPM)
  • Flange Size Range: 1¼” to 8”

Materials of Construction

  • Cast Iron Volute
  • Bronze Impeller
  • Stainless Steel Shaft
  • C/SiC/EPDM Mechanical Seal (other seals available upon request)
  • NEMA Standard Motors
