Wilo-SP Series
SP Series
Your advantages
- Easy installation thanks to 10 ft power cable with type B plug.
- Automatic operation through tethered float switch.
- Operationally safe thanks to self-switching thermal motor monitoring.
Recommended services

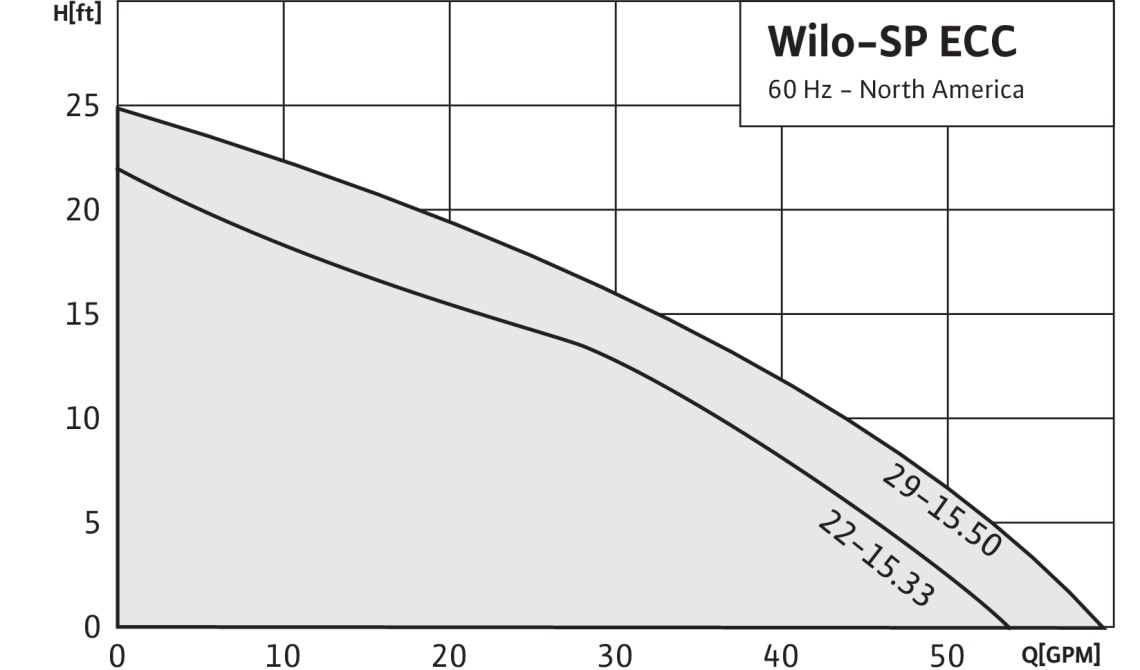

Wilo SP ECC Pump Curve
Design
Submersible Wastewater pump for transportable installation
Application
Drainage of
- Pump chamber and pump sump
- Soakaway
- Flooded basements
Liquid
For the pumping in household areas of:
- Sewage without faeces
- Wastewater (with small amounts of sand and gravel)
Equipment/function
Wilo-SP ECS...:
- Oil-filled motor for max. heat dissipation
- Built-in overload thermal protections with auto reset.
- 10 ft power cord with type B plug
- Vertical float switch
Wilo-SP ECC...:
- Oil-filled motor for max. heat dissipation
- Built-in overload thermal protections with auto reset.
- 10 ft power cord with type B plug
- Tethered float switch
Wilo-SP WCC...:
- Oil-filled motor for max. heat dissipation
- Built-in overload thermal protections with auto reset.
- 10 ft power cord with type B plug
- Tethered float switch
Technical data

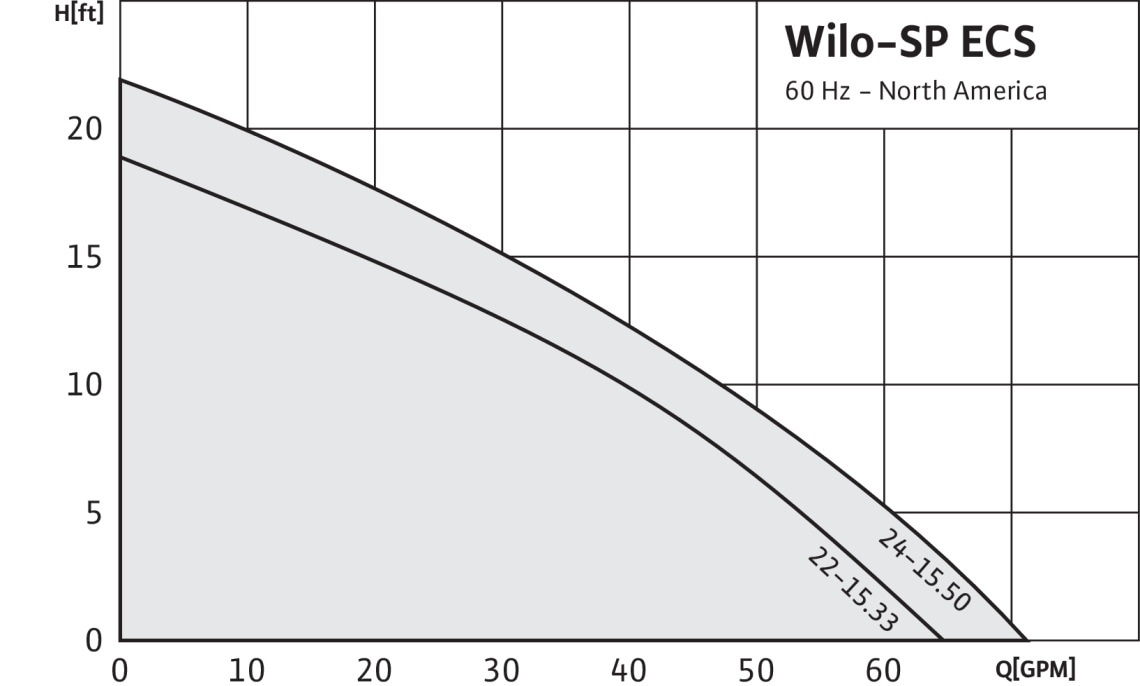

Wilo-SP ECS...
- Max. flow: 70 US gpm
- Max. head: 24 ft
- Max. fluid temperature: 77 °F (25 °C)
- Mains connection: 1~115 V, 60 Hz
- Discharge port: 1½" FNTP, 1¼" FNTP with adaptor
Wilo-SP ECC...
- Max. flow: 60 US gpm
- Max. head: 26 ft
- Max. fluid temperature: 77 °F (25 °C)
- Mains connection: 1~115 V, 60 Hz
- Discharge port: 1½" FNTP, 1¼" FNTP with adaptor

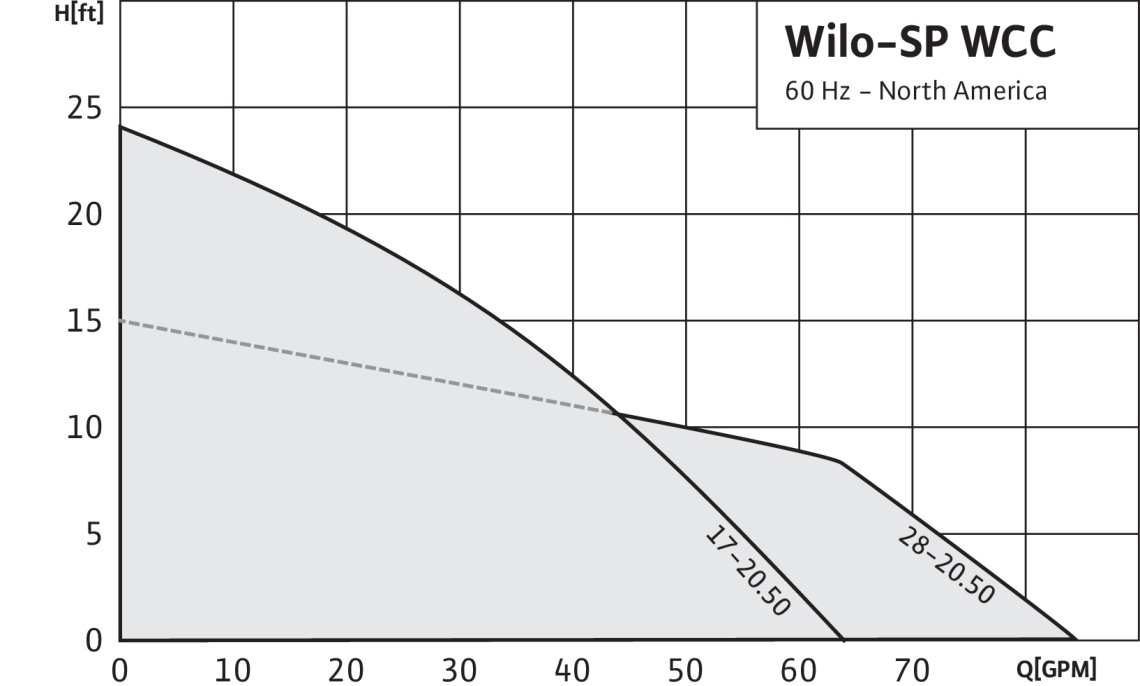

Wilo-SP WCC...
- Max. flow: 85 US gpm
- Max. head: 25 ft
- Max. fluid temperature: 131 °F (55 °C)
- Mains connection: 1~115 V, 60 Hz
- Discharge port: 2" FNTP
Materials
Wilo-SP ECS...
- Pump housing (volute): stainless steel
- Motor housing: cast iron
- Impeller: reinforced thermoplastic
Wilo-SP ECC...
- Pump housing (volute): cast iron
- Motor housing: cast iron
- Impeller: reinforced thermoplastic
Wilo-SP WCC...
- Pump housing (volute): cast iron
- Motor housing: cast iron
- Impeller: reinforced thermoplastic
Commissioning
Please note the following for the mains connection:
- Power outlet for type B plugs installed.
- Correctly installed protective earth conductor.
- Ground-Fault Circuit Interrupter installed (GFCI).
- Connect the pump directly to the power outlet. Do not use any extension cords!
- Fuse protection: max. 15 A
Installation and operating instructions
Wilo ECC Series IOM
| Number of pages | 8 |
PDF (440 KB)Wilo ECS Series IOM
| Number of pages | 8 |
PDF (459 KB)Wilo WCC Series IOM
| Number of pages | 8 |
PDF (353 KB)Wilo ECS Series .5-29/70_ECS 1-30/85 IOM
| Number of pages | 6 |
PDF (401 KB)Data sheet
WILO SP ECC Submittal Data Sheets
| Number of pages | 1 |
PDF (974 KB)WILO SP ECS Submittal Data Sheets
| Number of pages | 1 |
PDF (982 KB)WILO SP WCC Submittal Data Sheets
| Number of pages | 1 |
PDF (1 MB)| Product description | Article number | |
|---|---|---|
ECC29-15.50 | 2708304 | |
ECS22-15.33 | 2708306 | |
ECS24-15.50 | 2708307 | |
WCC17-20.50 | 2708302 | |
WCC28-20.50 | 2708301 |
