Z 15+

Timed and Constant Speed Circulating Pump


  • Domestic Hot Water Recirculation

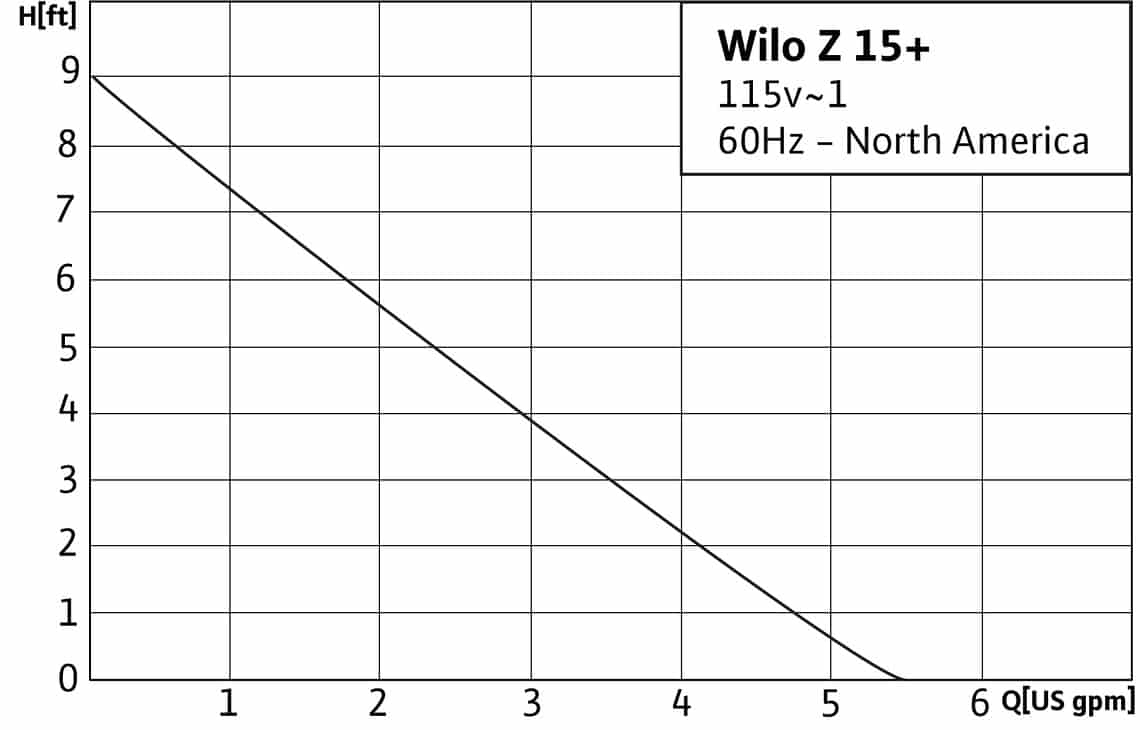

Max. Flow: 5.5 GPM

Max. Head: 9 feet

Features & Benefits

  • CSA compliant to NSF-372 & NSF-61
  • Compact design
  • Conserves energy and water
  • Optional digital timer
  • Quick installation
  • 115V power cord included

Technical Data

  • Water temp range: 32°F to 160°F(0°C to 71°C)
  • Max. working pressure: 145 PSI (10 Bar)
  • Electrical Connections: 1~115v, 60Hz
  • Protection Class: NEMA 12

Materials of Construction

  • Impeller: Composite/40% Glass filled (PA66G40)
  • Shaft: Ceramics
  • Rotor core: Silicon steel sheet + copper strip

Product Brochure

Z 15+

Installation & Operation Manual

Z 15+ IOM


Z 15+

Instruction Sheet
