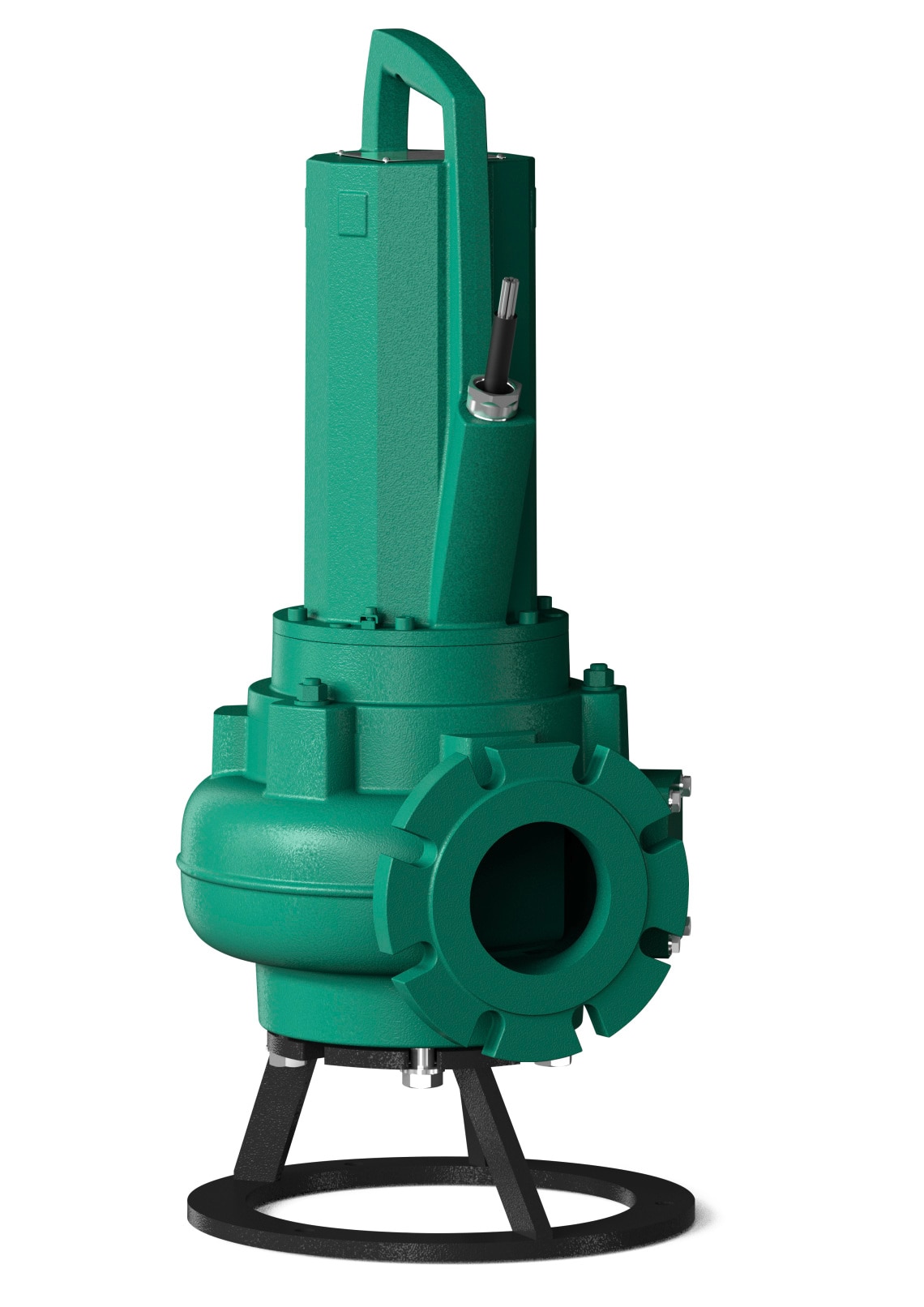

Rexa PRO

Submersible Sewage Pumps

Application

  • Wastewater and sewage
  • Domestic and site drainage
  • Sludges up to 8% dry matter
  • Municipal and industrial applications

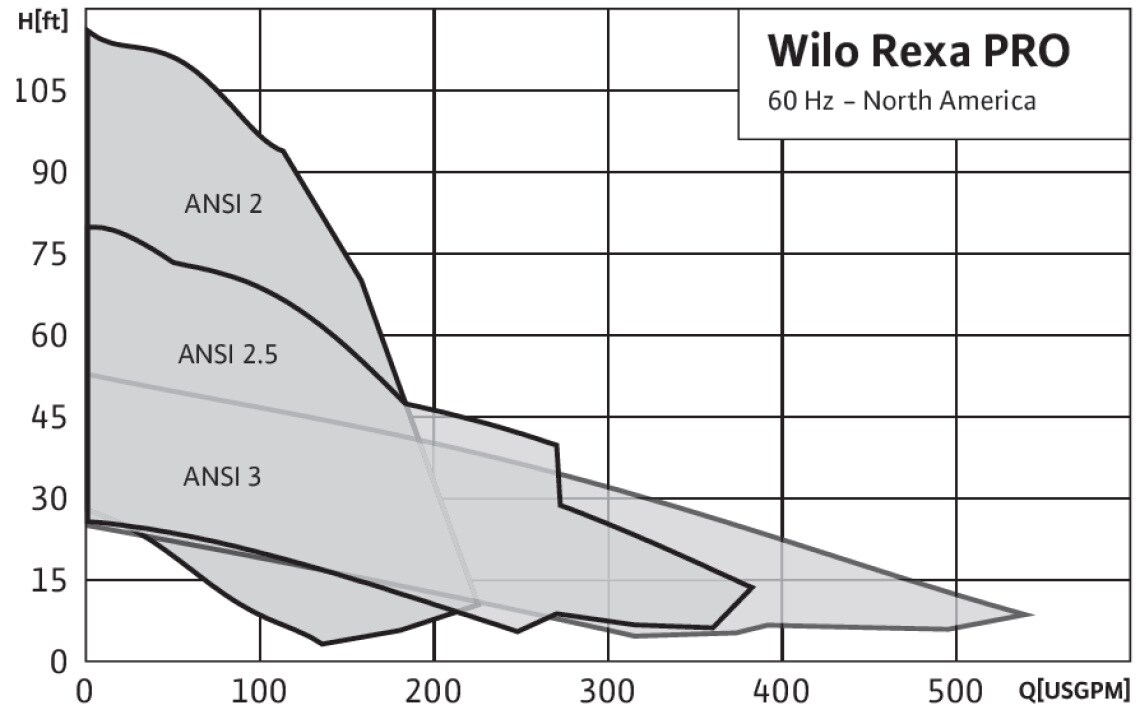

Max. Flow: 550 GPM

Max. Head: 110 feet

Features & Benefits

  • Clog-resistant vortex and 1-vane
  • FM explosion-proof rated
  • Dual mechanical shaft seals
  • Watertight cable inlet
  • Quick and easy installation

Technical Data

  • Electrical Connections: 1~ 230v, 3~ 230v, 460v
  • Protection class IP 68, Insulation class F
  • Max fluid temp: 37°F-104°F (3°C-40°C)
  • Wet pit only
  • Solids passage up to 3 in
  • Max immersion depth: 66 ft (20m)

Materials of Construction

  • Cast Iron Volute, Impeller and Motor Housing
  • Seals: SiC/SiC (pump side), C/MgSiO4 (Motor)
