The Weight of Flow
A Guide to Fluid Density & Specific Gravity
Fluid density and specific gravity are fundamental fluid properties that influence centrifugal pump selection, performance, and system design. Even small variations in these properties can significantly affect pressure, power requirements, and mechanical loading, while pump head remains unchanged for a given pump geometry and speed.
Fluid density and specific gravity are related, but they are not the same.
Fluid Density
Fluid density is the mass of a fluid per unit of volume, usually expressed in lb/ft3 or kg/m3. It is considered an absolute property, a measurable physical characteristic of fluid and describes the actual physical behavior of the fluid.
Why does fluid density matter for pumps:
- Higher-density fluids require more energy to move at the same flow rate
- Density directly affects the pressure generated at a given head
- Pump motor power must be adjusted for fluids denser than water
Standard water has a density of 1.0 g/cm³ (1000 kg/m³) at 39.2 0F (4 0C), serving as a baseline for most pump calculations. Fluid density can vary depending on temperature and the amount of solids or suspended particles present. Fluids with higher density increase the pump’s load, potentially reducing efficiency and requiring stronger or more durable materials to ensure reliable operation.
Specific Gravity

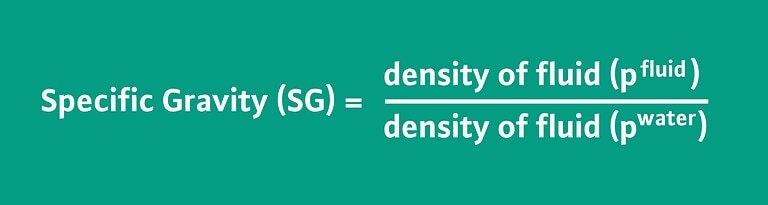

Specific gravity (SG) is the ratio of a fluid’s density to that of water, generally at 39.2 0F. Unlike fluid density, which is an absolute property of a fluid, specific gravity is a relative property that compares one fluid to water under the same conditions. Fluid’s specific gravity is calculated:
Differences Between Fluid Density and Specific Gravity
Why does specific gravity matter for pumps:
- Determines pressure for a given pump head
- Guides pump power adjustments relative to water
- Simplifies comparison between fluids without use units
- SG = 1 -> same density as water
- SG > 1 -> heavier than water (glycerin, propylene glycol, etc.)
- SG < 1 -> lighter than water (gasoline, etc.)
| Property | Fluid Density (ρ) | Specific Gravity (SG) |
|---|---|---|
| Definition |
Mass of fluid per unit of volume |
Ratio of fluid density to water density |
| Type | Absolute property | Relative property |
| Units | lb/ft³, kg/m³, g/cm³ | Unitless |
| Reference | Independent of other fluids |
Compares fluid to water at 39.2 0F (40C) |
| Typical Value (water) | 1.0 g/cm3 (1,000 kg/m3) | 1.0 |
| Variation Factors | Temperature, solids content, pressure | Temperature, solids content (indirectly via density) |
Importance in Pump Selection
Understanding a fluid’s density and specific gravity is essential for proper pump selection, as they affect energy requirements, pressure, and material needs, ensuring efficient, reliable operation with minimal wear.
Pump Head & Pressure
- Pressure increases with fluid density, even at the same head
- Pumps must handle the actual pressure load of the fluid
Power Requirements
- Denser fluids need more pump power
- Accurate density/specific gravity ensures correct motor sizing
Material & Component Considerations
- High-density or corrosive fluids can accelerate wear
- Proper impeller, seal, and bearing materials improve pump life
System Efficiency
Ignoring density/specific gravity can cause:
- Oversized pumps → higher energy costs
- Undersized pumps → inadequate flow/pressure
- Premature wear → increased maintenance
Pump Selection Considerations
The table below summarizes how fluid density and specific gravity influence key pump selection factors, including pump head, power requirements, and material considerations.
| Fluid Density/Specific Gravity | Effect on Pumping | Pump Selection Guidelines |
|---|---|---|
|
Low Density (SG < 1.0) |
Lower discharge pressure for the same head Reduced shaft load Slightly lower horsepower requirement |
Verify pump will meet system pressure requirements Motor may be oversized if selected for water Check for potential cavitation if fluid vaporizes easily |
|
Standard, Water (SG = 1.0) |
Baseline reference for pump curves Normal head, pressure, and power requirements |
Use standard pump curves and motor sizing Typical centrifugal pump selection applies Serves as benchmark for other fluids |
|
High Density (SG > 1.0) |
Higher discharge pressure for the same head Increased shaft and bearing load Higher horsepower requirement |
Upsize motor to handle increased power demand Confirm pump casing and mechanical components can handle higher loads Recheck NPSH, shaft loading, and efficiency under dense fluid conditions |
Factors Affecting Density and Specific Gravity
Fluid density and specific gravity are influenced by temperature, solids content, and chemical composition. These variations impact pump sizing, efficiency, and material selection.
| Factor | Impact on Density and Pump |
|---|---|
| Temperature | Higher temperature -> lower density -> lower pressure at same head |
| Solids Content | More solids -> higher density -> increased pump energy required |
| Chemical Composition | Additives may change fluid density/specific gravity -> affects material selection |
Knowing a fluid’s density and specific gravity is crucial for accurate pump sizing, efficient operation, and overall system reliability. Always verify these properties for the fluid’s actual temperature and composition to ensure you select the right pump, protect equipment, and minimize energy costs and maintenance.
Wilo is Your Solutions Provider
Wilo is your solutions provider for understanding and managing the impact of fluid properties on pump performance. With extensive engineering expertise, a broad portfolio of high-efficiency pumps, and comprehensive system support, Wilo helps ensure the right pump is selected for your specific fluid, operating conditions, and application. From design and selection to commissioning and lifecycle support, Wilo delivers reliable, energy-efficient solutions that optimize performance, protect equipment, and reduce total cost of ownership.
January 2026 | tlk
