The Energy Behind the Flow
Velocity, Pressure, and Head Explained
In pump systems, velocity, pressure, and head are different expressions of mechanical energy acting on a fluid. Understanding how they interact helps engineers and operators properly size pumps, interpret pump curves, minimize losses, and troubleshoot performance issues.
The Three Forms of Energy in a Pump System
Velocity (Kinetic Energy)
Velocity is how fast the fluid is moving, typically expressed in feet per second (ft/s) or meters per second (m/s). In pump engineering, this energy is expressed as velocity head, which represents a portion of total head (TH) due to fluid motion.
- No motion (velocity) = no kinetic energy | Higher velocity = more kinetic energy
- Increases with smaller pipe diameters or higher flow rates
- Excessive velocity leads to
- Higher friction losses
- Noise and vibration
- Erosion and wear
Velocity represents this kinetic energy:
Why it Matters for Pumps
Pressure describes how hard the fluid pushes on its surroundings and is commonly measured in psi or bar.
- Pumps increase pressure by adding energy to the fluid
- Pressure varies with elevation and fluid density
- Pressure alone does not fully describe pump performance
- Pressure measures the force a liquid exerts per unit area, expressed in psi, kPa, or bar. Unlike head, pressure depends on fluid density.
Pressure is simply one expression of head:
Head (Energy per Unit of Weight)
Head is the most important concept in pump engineering. It represents energy per unit weight of fluid that a pump imparts to a liquid and is commonly expressed as the vertical height the liquid could be lifted. It is measured in feet (ft) or meters (m). Head is independent of fluid density, which is why pump curves are always expressed in head, and not pressure.
Head consists of three components:
- Elevation head: energy from height
- Pressure head: energy from pressure
- Velocity head: energy from fluid motion
How Velocity, Pressure, and Head are Connected
These three energy forms are tied together by Bernoulli’s Principle, which states “For steady, incompressible flow with negligible losses, the total mechanical energy of a flowing fluid equals the sum of elevation head, pressure head, and velocity head”.

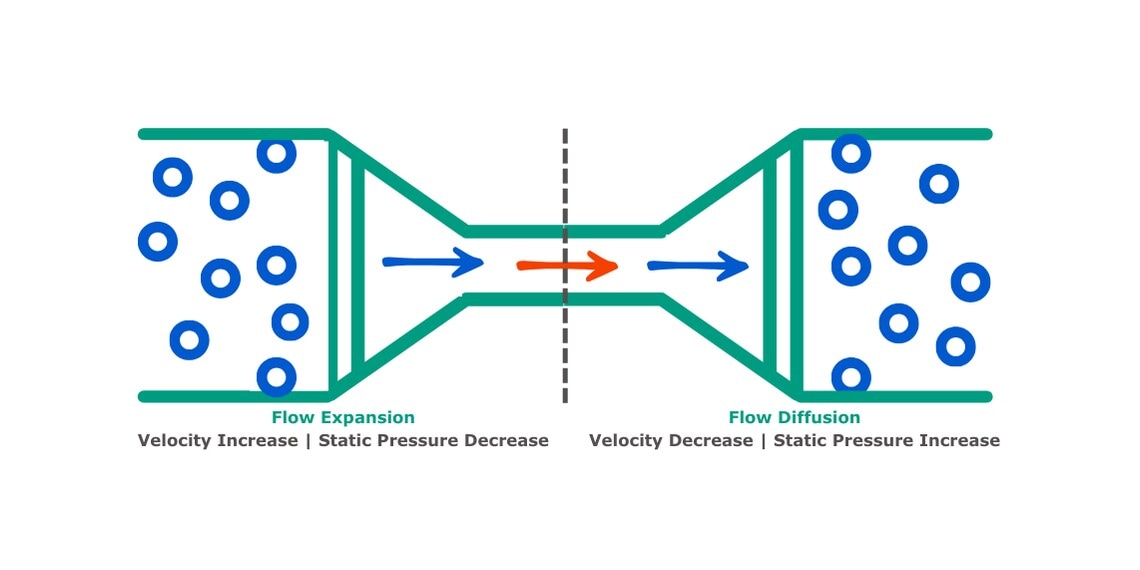

In a constant-energy system, increasing fluid velocity often results in a corresponding decrease in static pressure, and vice versa.

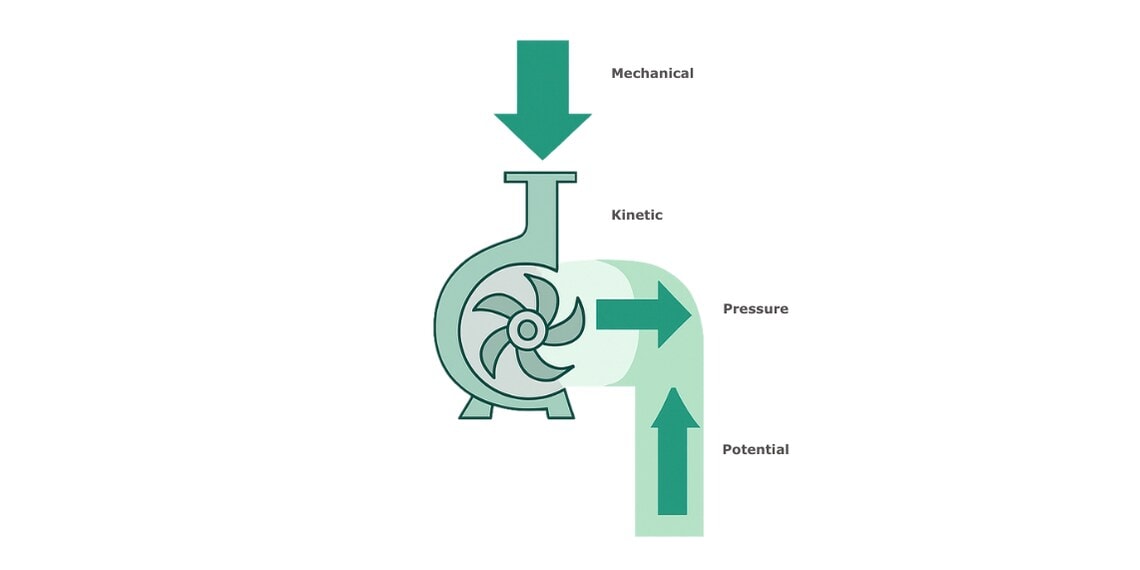

Pumps add energy in the form of head, which may be expressed as increased pressure, increased velocity, or a combination of both, depending on system conditions. Changes in pipe size redistribute energy between velocity and pressure, but the total head delivered remains governed by the pump and its operating point.
Why Pumps are Rated in Head, Not Pressure
Head is the universal language of pump performance, allowing comparisons to select and analyze pumps across a wide range of applications and fluids.
- For a given pump operating point, head is independent of fluid density
- Pressure changes with specific gravity, but head does not
- Using head allows one pump curve to apply to:
- Water
- Glycol mixtures
- Oils and other liquids
Practical Impacts on Pump Systems
The relationship between velocity, pressure, and head has direct, real-world consequences for how pump systems are designed, operated, and maintained. Pipe sizing, friction losses, and system behavior are all influenced by how energy is distributed within the system, and understanding these interactions helps improve efficiency, reduce wear, and quickly diagnose performance issues.
Pip Size
- Small pipes -> higher velocity -> higher friction losses
- Larger pipes -> lower velocity -> improved efficiency
System Losses
- Friction losses increase approximately with the square of velocity
- Most system heads are consumed by overcoming friction, not elevation
Troubleshooting
- High pressure readings may indicate restrictions
- Low pressure with normal head may point to excessive velocity or air entrapment
Summary
Velocity, pressure, and head describe how energy moves through a pump system, each playing a distinct but interconnected role. As summarized below, velocity reflects fluid speed and influences friction losses and wear, pressure represents the force exerted on pipe walls and varies with fluid density, and head represents the energy added by the pump and serves as the basis for pump selection and performance evaluation.
| Term | What it Represents | Why it Matters |
|---|---|---|
| Velocity | Fluid speed | Affects losses and wear |
| Pressure | Force on pipe walls | Varies with density |
| Head | Energy added by the pump | Basis for pump selection |
Pumps do not create pressure directly; instead, they add head, which the system converts into pressure, velocity, or elevation depending on operating conditions. Understanding how these elements work together provides clearer insight into pump behavior, system efficiency, and long-term reliability.
