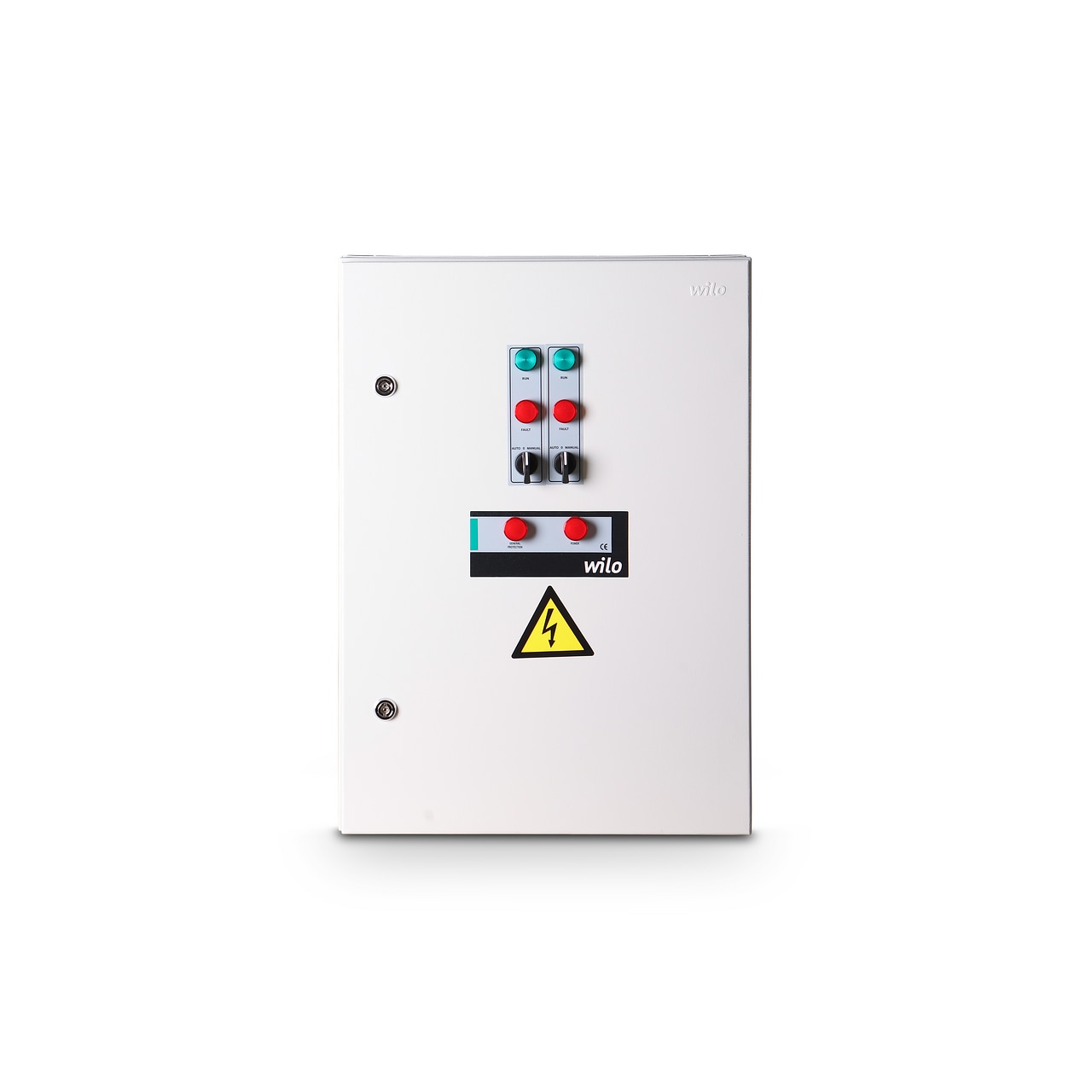

Switchgear CP

• Enhanced reliability: Automatic duty-rotation and instant switchover to the standby pump in the event of a fault keep the system running 24/7 while balancing wear across all pumps. Individual run / fault outputs and lamps for each pump enable rapid troubleshooting.

• User-friendly control: A Hand-0-Auto selector on every pump lets operators choose full automatic mode or test any pump manually—up to four pumps can even be run simultaneously when required.

• Clear monitoring: Dedicated run and fault indicator lamps, plus optional panel-mounted audible/visual alarms, give immediate status feedback and help maintenance teams minimise downtime.

• Easy integration: Dry-contact terminals for external Start/Stop, common run (SBM) and common fault (SSM) signals, together with per-pump run/fault relays, allow seamless connection to BMS, SCADA or simple float / pressure switches.

• Scalable, flexible design: Controls one to four wet- or dry-rotor circulation pumps and is available in wall-mounted (WA) or free-standing (SG) enclosures, making it easy to match plant-room layouts.

• Robust protection & soft starting: Optional soft-starter and PTC thermistor relay safeguard motors and reduce inrush current; fan cooling and a powder-coated steel cabinet provide long service life even in demanding plant rooms.

• Comprehensive options: Lockable main isolator, multifunction power meter, enclosure fan and other accessories can be factory-fitted to tailor the panel for booster, HVAC or drainage-station applications.

• Future-proof transparency: Common fault and run relays (SSM/SBM), together with individual status outputs, deliver complete system visibility and simplify remote monitoring over the panel’s lifetime.
