Wilo-SCP

Design type

Axially spilt case pump mounted on a baseplate

Application

  • Pumping heating water in accordance with VDI 2035 water/glycol mixtures, cooling/cold water and domestic hot water
  • Applications in municipal water supply, irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Efficient hydraulics for high flow rat
  • es up to 17,000 m³/h
  • Low NPSH thanks to double suction impeller
  • High process reliability and easy maintenance without removing the pressure or suction lines
  • Decreased noise level and reduced vibrations
  • Options: energy efficient IE3-/IE4 motors, drinking water approval (KTW, ACS), innovative Ceram CT coating

Wilo-Helix FIRST V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

  • Water distribution and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Efficiency-optimised, laser-welded, optimised 2D/3D hydraulics
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and degassing-optimised hydraulic parts
  • Reinforced pump housing, flow and NPSH optimised
  • Space-saving and easy maintenance thanks to compact design
  • Particularly sturdy coupling guard

Wilo-Helix VE

Design type

Electronically controlled, non-self-priming high-pressure multistage centrifugal pump in vertical design, with in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Multistage, speed-configurable stainless steel high-efficiency pump with 2D/3D hydraulics and standard motor
  • Optimised design for easy operation, transportation and installation with handles, lantern adjustment and rotatable free flanges
  • User-friendly display with Green Button Technology and full text menu
  • IF plug-in module for quick communication with the BMS
  • Quick maintenance due to innovative cartridge mechanical seal and spacers
  • Lower life cycle costs due to new Helix design

Wilo-Helix V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and NPSH-optimised pump housing
  • Maintenance-friendly design with particularly robust coupling guard
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Wilo-Helix Excel

Design type

Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing systems
  • Irrigation

Special features/product advantages

  • Highly efficient EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2
  • Integrated electronic control “High-Efficiency Drive”
  • Simple operation thanks to tried-and-tested Green Button Technology and a clearly arranged display
  • User-friendly "X-Seal" cartridge mechanical seal and spacer coupling (from 5.5 kW) for fast and easy maintenance
  • Flexible integration into building automation
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

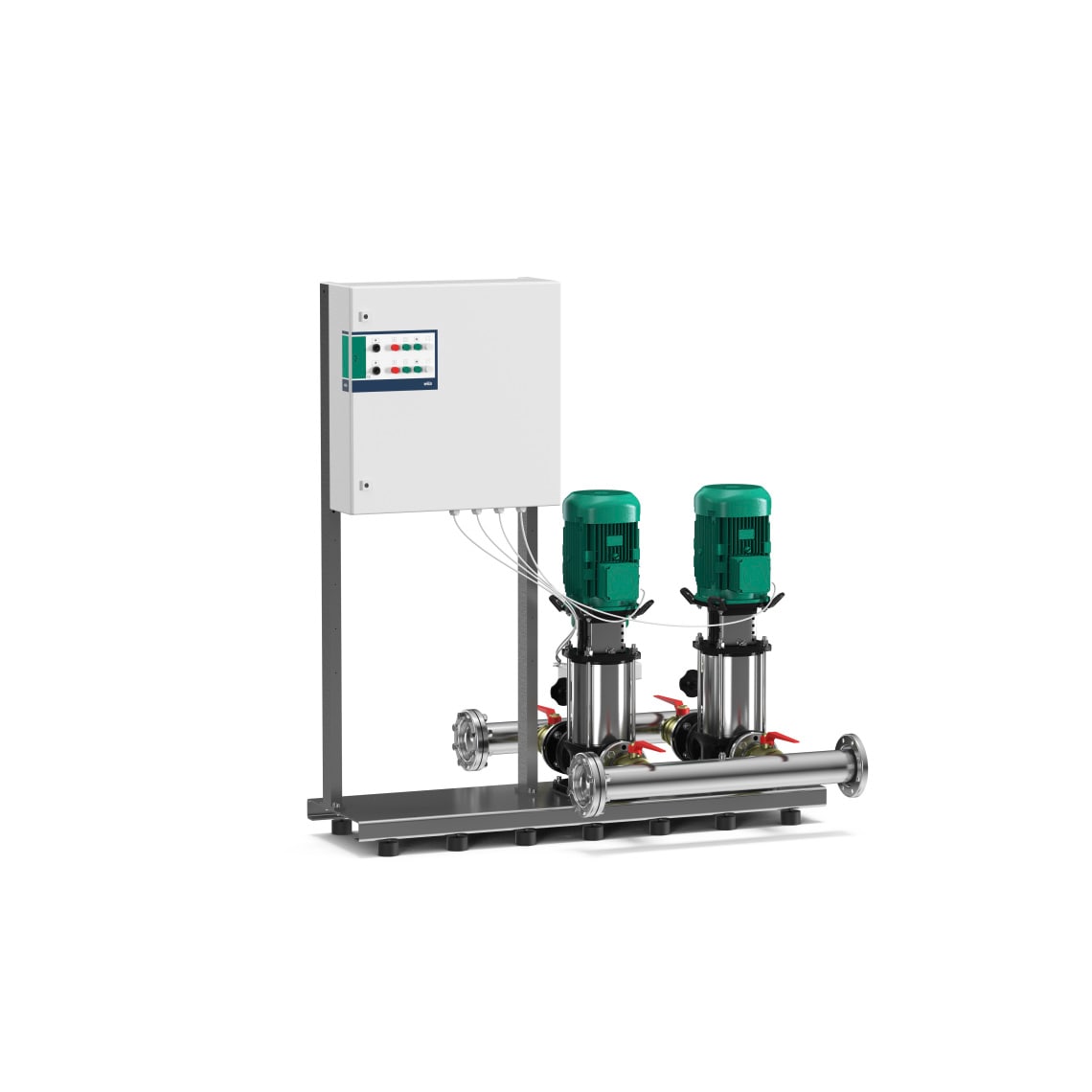

Wilo- FLA- 2

Design type

Pressure boosting system for fire extinguishing systems with indirect connection in accordance with DIN 14462.
With 2 vertical stainless steel high-pressure multistage centrifugal pumps in glanded version

Application

Fully automatic water supply for fire extinguishing systems with wall hydrants of the type "F" in domestic, commercial and public buildings, hotels, hospitals, shopping centres and also offices and industrial buildings

Special features/product advantages

  • Sturdy system with 2 Helix FIRST V or MVI stainless steel high-pressure multistage centrifugal pumps, in accordance with DIN 1988 and DIN 14462
  • Absolute operational reliability for 2-pump systems with 100 % redundancy
  • Easy adjustment and operational reliability due to the FLA control unit
  • Pre-set throttle valve on the pressure side of the pump to protect the pump at low volume flows

Wilo-Economy MHI

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing system
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • All parts that come in contact with the fluid are made of stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L)
  • Space-saving, compact design
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy- MHIL

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing systems
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • Impellers and stage housing made of stainless steel
  • Pump housing made of EN-GJL-250 cast iron, KTL coating
  • Single-phase and three-phase versions available

Wilo-Economy MHIE

Design type

Non-self-priming multistage pump with integrated frequency converter

Application

  • Water supply and pressure boosting
  • Fire extinguishing systems
  • Industrial circulation systems
  • Process engineering
  • Cooling water circulation systems
  • Washing and sprinkling systems

Special features/product advantages

  • Easy operation and compact design
  • All parts in contact with fluid are made of stainless steel
  • IEC three-phase motor (level IE2) with integrated frequency converter (frequency converter for 3~motors have optional interfaces for bus communication using plug-in IF-Modules)
  • Full motor protection
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-CronoNorm- NLG

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

  • Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
  • Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Reduced life cycle costs thanks to optimized efficiency
  • Bidirectional, force-flushed mechanical seal
  • Interchangeable casing wear rings
  • Permanently lubricated, generously dimensioned roller bearings
  • Low NPSH, best cavitation properties

Wilo-CronoNorm- NL

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

  • Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
  • Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Reduced life-cycle costs through optimised efficiency levels
  • Bidirectional, force-flushed mechanical seal
  • Low NPSH values, best cavitation properties
  • Shaft coupling with or without spacer coupling

Wilo-CronoBloc- BL

Description

The legal requirements and regulations pertaining to drinking water are becoming ever more stringent, especially in highly-developed countries. Increasing demands are therefore being placed on the materials in the pumps and systems that are used. At the same time, global megatrends such as urbanisation are escalating the need to rely on ever more efficient systems. The Wilo-CronoBloc is our solution due to its high efficiency and drinking water approval.

Your advantages

  • Energy-saving thanks to state-of-the-art pump hydraulics and the use of IE3 motors
  • Suitable for drinking water supply (ACS approved)
  • Can be globally used in a wide variety of applications thanks to various impeller materials, several motor options as well as different mechanical seals
  • Easy installation due to standard pump support feet and optional supporting blocks
  • Easy maintenance and user-friendly design with “back pull-out” design and cartridge mechanical seal for large pump types

Wilo-CronoBloc-BL-E

Design type

Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Energy savings due to integrated electronic power adjustment
  • Optional interfaces for bus communication using plug-in IF-Modules
  • Simple operation due to tried-and-tested Green Button Technology and display
  • Integrated full motor protection (PTC thermistor sensor) with trip electronics
  • Meets user requirements due to performance and main dimensions in accordance with EN 733 (DIN for standard pumps)
